Biscuit

We offer a wide range of different packaging machines for effective and gentle packaging of your products. From horizontal and vertical film filling and sealing machines to net sewing machines and net sealing machines – we have the right machine for you for every different type of packaging.


VIDEO GALLERY

  • Distance Controlle

    Normally the distance controller connects with the former making machine and the main function is distance each row of product.

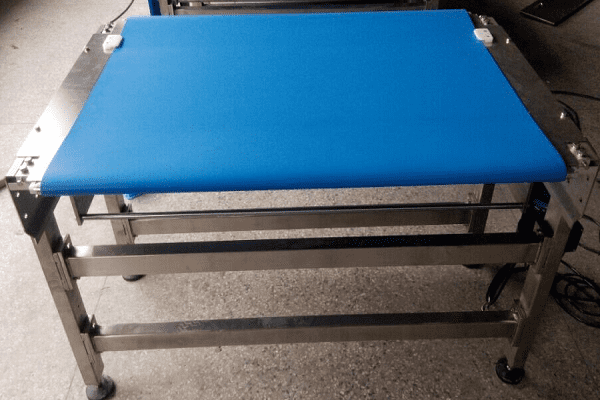

  • Distributor Conveyor

    The distributing conveyor normally is 1000-1500mm width and base on the product capacity or customer factory space to design the length. The main function of this unit is delivery goods in a certain distance at a certain speed.

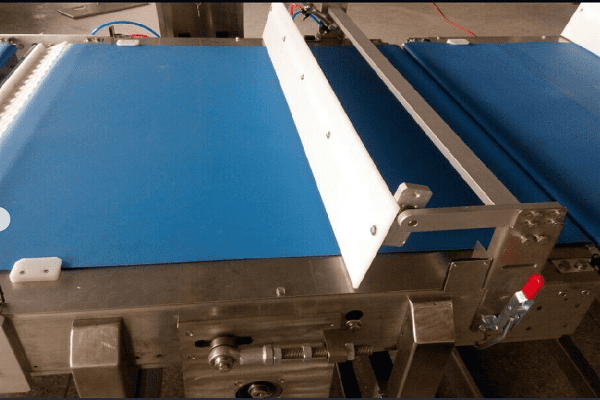

  • Automatic Sorting Unit

    The sorting unit is consist of 5 detectors,three motors and three separated belt. And this part is connected the feeding conveyor and the packing machine, which means this part synchronize the whole line speed.  This unit can avoid product pile up and machine stop frequency because of no product.

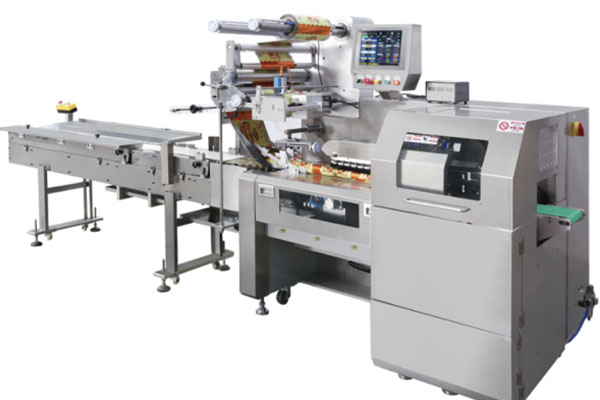

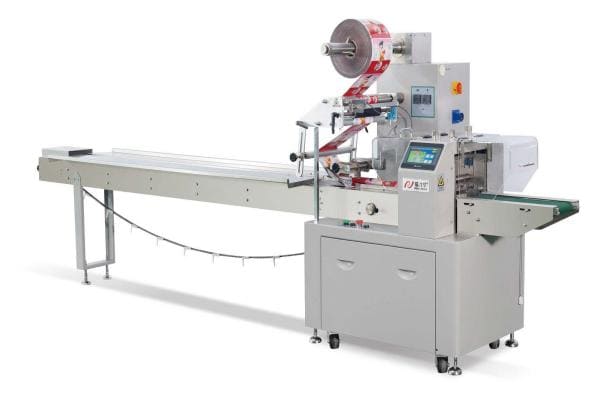

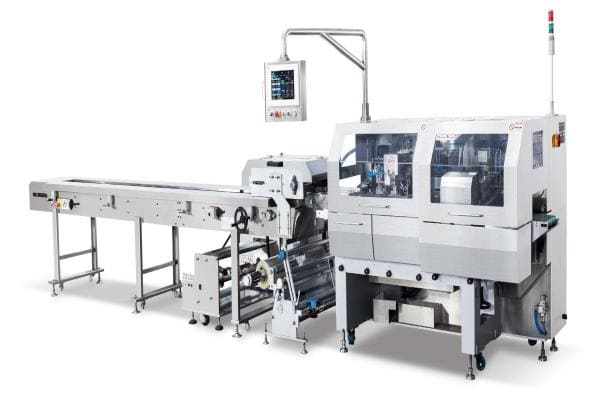

  • Flow Packing Machine

    Machine Model: RD-BM-508S box-motion packing machine  (4 servo motors controlled) RD-BM-708S box-motion packing machine  (5 servo motors controlled) ZP-500SG ZP-530SG
    Machine Material: Full stainless steel 304# machine body Painted steel (304ss optional) stainless steel
    Packing Speed:  30-120 bags/min  30-60 bags/min 30-200 bags/min 30-300 bags/min
    Bag Size(L*W*H):  Length:180-500mm, width:50-200mm,height: 5-100mm  Length:180-500mm, width:50-300mm, height: 5-120mm 80- infinite mm 50-150mm 30-55mm 60- infinite mm 50-150mm 30-55mm
    Pouch Style: Pillow type (Three-side sealed) Pillow type (Three-side sealed) Pillow type (Three-side sealed) Pillow type (Three-side sealed)
    Film Width: 100-500mm 100-670mm 180-400mm 180-400mm
    Packing Material: plastic film (KNY+PE, KNY+CPP,  OPP+CPP, PET+CPP, PET+VMCPP) plastic film (KNY+PE, KNY+CPP,  OPP+CPP, PET+CPP, PET+VMCPP) plastic film (OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL) plastic film (OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL)
    Feeding direction: Left to right (Product moviing direction )
    Total Power: 3.5 kw 2.5kw 6.3KW
    Overall Weight: 1000 KG 1000 KG 550KG 630KG

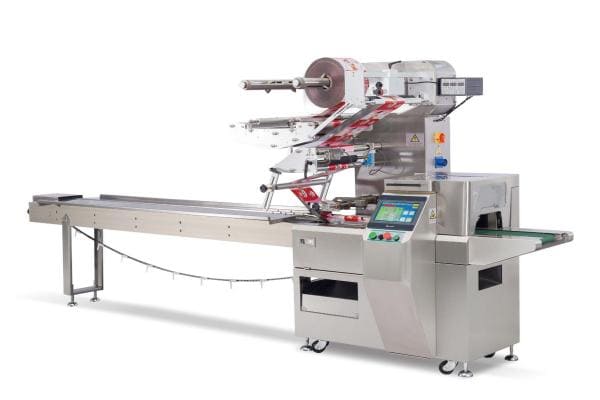

    Flow Packing Machine 2.jpg

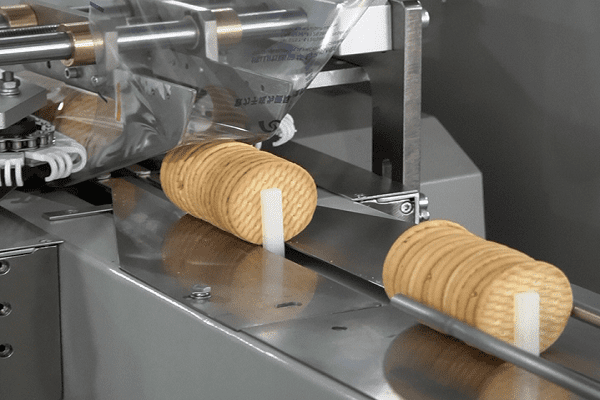

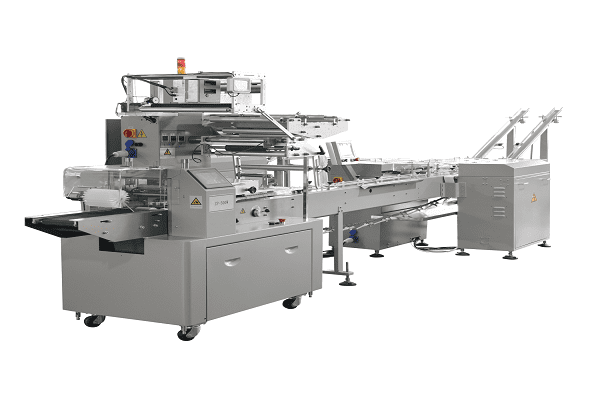

  • On Edge Biscuit Packaging Machine:
