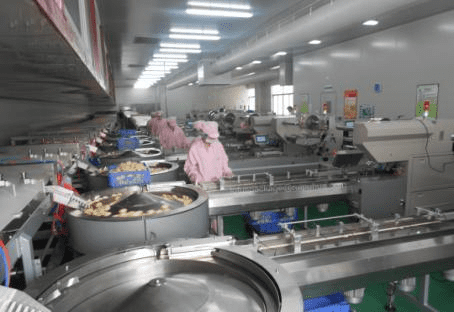

“We were looking for a supplier who could meet the specification, contribute ideas and also offer the flexibility to modify their machines to work with our environment. RPH was a good fit.” The confectionery packaging line is suitable for rice bar, marshmallow and hard candy.

VIDEO GALLERY

  • Disk Turntable Unit

    This unit is use the disk centrifugal force to get the product in the right position and waiting for delivery. The disk can flexiblly adjust according product size. This unit is suitable for the hard products.

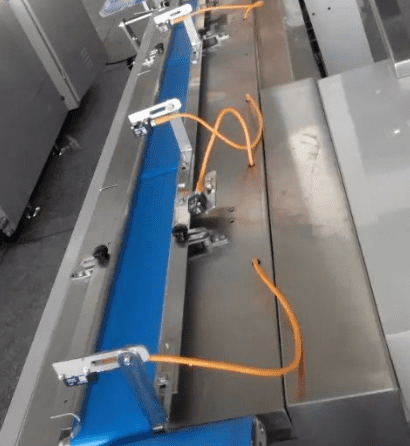

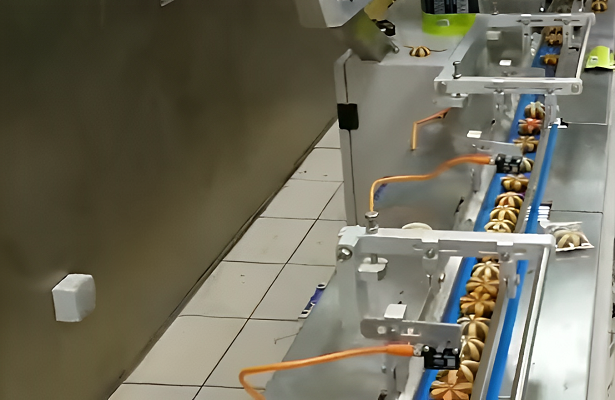

  • Automatic Sorting Unit

    The sorting unit is consist of 5 detectors,three motors and three separated belt. And this part is connected the feeding conveyor and the packing machine, which means this part synchronize the whole line speed.  This unit can avoid product pile up and machine stop frequency because of no product.

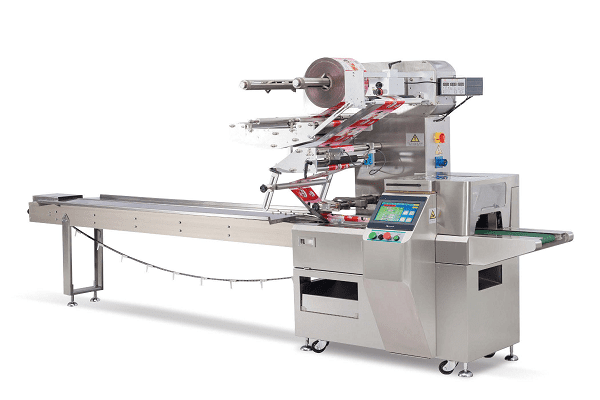

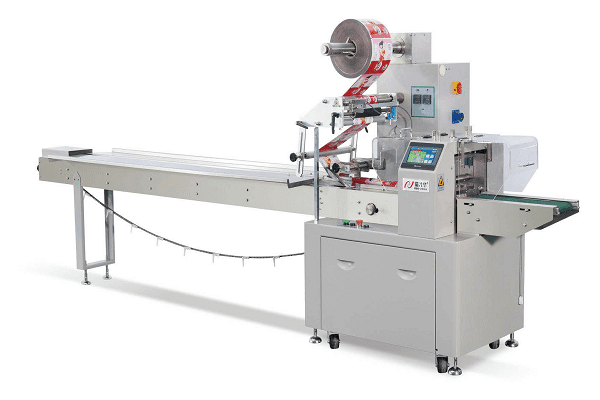

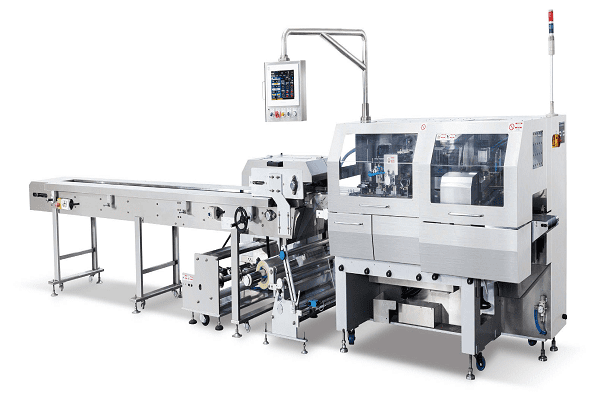

  • Packaging Machine

    Machine Model: RD-BM-508S box-motion packing machine  (4 servo motors controlled) RD-BM-708S box-motion packing machine (5 servo motors controlled) ZP-500SG ZP-530SG
    Machine Material: Full stainless steel 304# machine body Painted steel
    (304ss optional)
    stainless steel
    Packing Speed:  30-120 bags/min  30-60 bags/min 30-200 bags/min 30-300 bags/min
    Bag Size(L*W*H): Length:180-500mm
    width:50-200mm
    height: 5-100mm
    Length:180-500mm
    width:50-300mm
    height: 5-120mm
    80- infinite mm
    50-150mm
    30-55mm
    60- infinite mm
    50-150mm
    30-55mm
    Pouch Style: Pillow type (Three-side sealed) Pillow type (Three-side sealed) Pillow type (Three-side sealed) Pillow type (Three-side sealed)
    Film Width: 100-500mm 100-670mm 180-400mm 180-400mm
    Packing Material: Plastic film (KNY+PE, KNY+CPP,  OPP+CPP, PET+CPP, PET+VMCPP) Plastic film (KNY+PE, KNY+CPP,  OPP+CPP, PET+CPP, PET+VMCPP) Plastic film (OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL) Plastic film (OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL)
    Feeding direction: Left to right (Product movement direction )
    Total Power: 3.5 kw 2.5kw 6.3KW
    Overall Weight: 1000 KG 1000 KG 550KG 630KG

  • Machine Overviews
