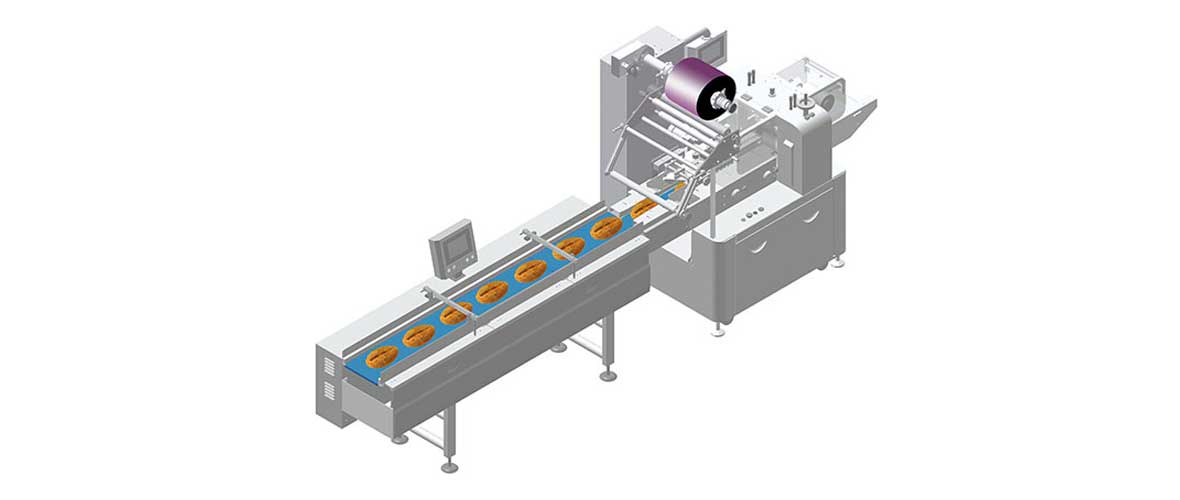

Automatic Big Bread Packaging Machine

Automatic Big Bread Packaging Machine

1. Introduction of Automatic Big Bread Packaging Machine

The bread packaging machine is specially designed for big bread and hamburger, and the package leakage rate is less than 0.5%. Ruipuhua's high-efficiency bread packaging machinery will help you save lots of money and time.

2. Advantages of Automatic Big Bread Packaging Machine

(1) The bread packaging machinery uses a multi-stage differential instantiation and a multi-grade feeding belt, the product is arranged neatly, with location accuracy and high speed.

(2) The bread wrapping machine adopts stainless steel and Nylon baffle, easy to operate and clean.

(3) PU belt can be dismantled without tools in 1 minute and equipped with a hopper to get product waste.

(4) The bread wrapping machine uses the conveyor belt to locate the products which have big shapes and the soft surfaces will be more precise and avoid damage.

(5) The bread packaging machinery structure is very simple, easy operation, and convenient for cleaning and maintenance.

(6) Control system of the bread wrapping machine uses high-quality electronic intelligent PLC, touch screen, and good HMI, operating more conveniently.

3. Application of Automatic Big Bread Packaging Machine

The bread wrapping machine is suitable for large shapes, soft bread, hamburgers, or any regular shape products, and so on. Connected with former production line by automatic feeder or manual feeder.

4. Packaging System Details

1. Sorting unit of packaging system introduction: The sorting unit parts consist of 2 conveyor belts and 5-6 sensors.

2. Function of the sorting unit: The main function of this sorting unit is to control the product feeding speed, located it, and connect it with the packaging machine automatically. Once it detected the product too much, the feeding speed will slow down, if lack of product, then the feeding speed will speed up soon.

3. Advantage of the sorting unit: Reducing human operation and making sure the packaging machine runs at a stable speed with fewer product wastes.

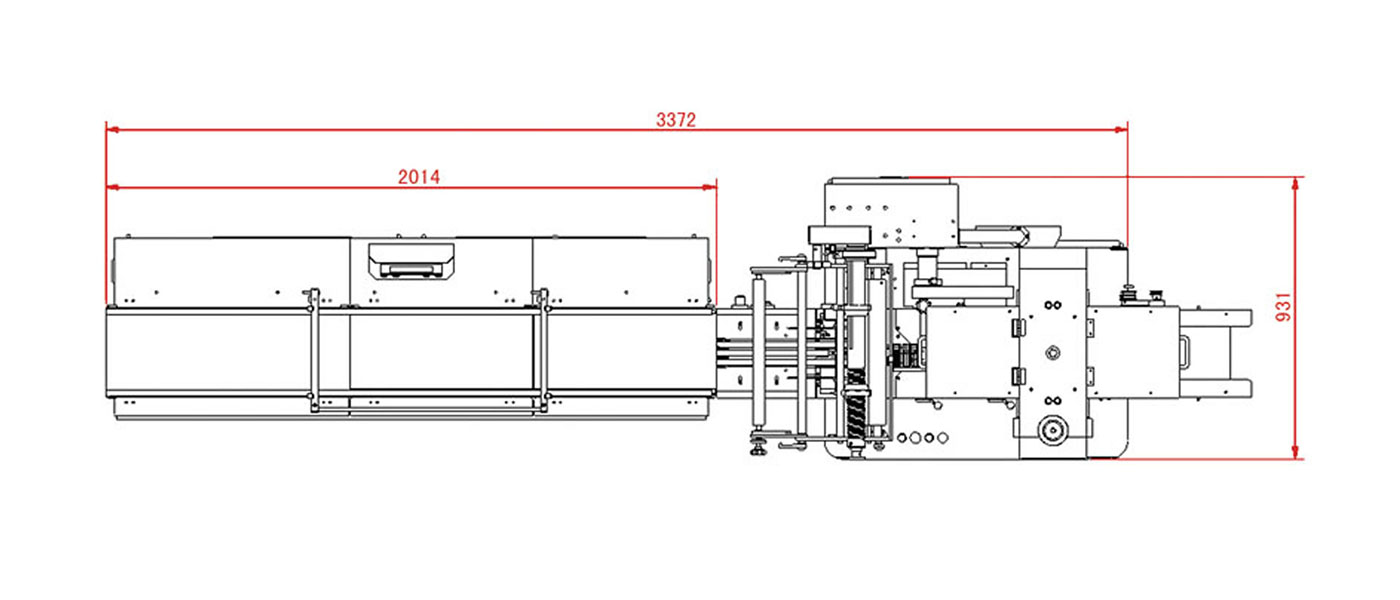

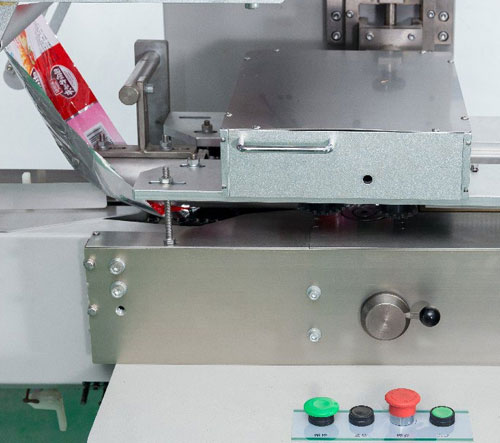

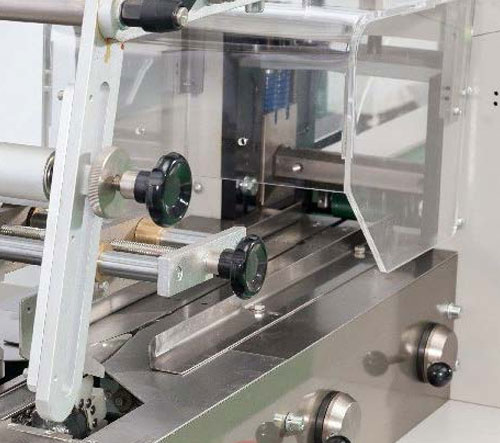

Packaging System Details

Packaging System Details

5. Packaging Samples

Packaging Line Application and Packaging Samples

Packaging Line Application and Packaging Samples


Packaging Line Application and Packaging Samples

Packaging Line Application and Packaging Samples


Rotary Type Packaging Machine

Machine Model

ZP-500 horizontal packaging machine

ZP-500SG packaging machine

(3 Servo controlled Double cutter)

ZP-500SG packaging machine

(3 Servo controlled Single cutter)

Packing speed

35-300 bags/min

35-300 bags/min

35-200 bags/min

Packing material


Bag style

Pillow type/fat pouch (3-side presealed)

Bag size (L*W*H)

85mm-230mm, 20-90mm,5-50mm

60mm- infinite, 30-150mm,5-50mm

80mm- infinite, 30-150mm,5-55mm

Film width


Packing Dimension  (L*W*H)



Heat power




Motor power



Total power

5.6 kw



Overall weight


Box-motion Type Packaging Machine




RD-BM-508S Box-motion Servo Packaging Machine


Bag former(mm)

W100-200mmHMax 100mm -- Big former

W50-100mmHMax 70mm --- Small former


Bag length

Small outer diameter 80-400mm; Large outer diameter 100-400mm


Film Width



Packing Speed



Packing material



Machine size



Total Power




Single phase 220V  50/60HZ  Air pressure:0.6MPA


Overall Weight





FAQ of Bread Packaging System

Q: What is the purity of the nitrogen generator if we need it for our bread packaging system?

A: About 99.5% and the capacity have 3 Nm³/h ,5 Nm³/h and 10Nm³/h, which depends on the number of packaging line you needs.

Q: Could we change the packing system direction or location?

A: Yes. You just change it conveniently by wheels. What’s more, the whole packing system is combined with different unit, which is easy to move it.

Q: For the big size product, which packing model suggested for us?

A: Depends on the product size, so you offer the size to us will be better. Normally, we have 2 kinds packing equipment suitable for you.

① Rotary type packing equipment, such as ZP-500SG.

② Box-motion packing machine, such as RD-BM-508S.

Q: What’s the belt size of automatic packaging system?

A: The standard automatic packaging system belt size is 1000mm width and height 1000mm, but it can be customized.

Q: What kind of information I need to offer if we want to buy this automatic packaging system?

A: Product size and pictures, package details, capacity, factory layout in CAD format and wafer production video.

Q: Could you help us adding the finished conveyor to deliver the wafer package into another room for carton packages?

A: Yes, of course. We are professional in designing the food packaging factory, considering the product flow, worker operation direction and passageway.

Q: Can your machine meet our needs well?

A:  After receiving your inquiry, please kindly consult us and providing following information:

- The soap bar size,including the length, width and thickness.

-Package information. How many pieces per bag?

- Do you want semi-automatic packing machine or fully automatic packing machine?

- Capacity of your production.

Then our engineer will make the suitable packaging solutions according to your specific requirement. Every machine is customized to meet your needs well.

Q: Are you packaging machine factory or trading company?

A: We are the factory, and especially R&D, manufacture and sell various packing requirements. We have engaged in the packing R&D and production near 20 years.

Q. What's your payment way?

A: T/T, West Union, pay in cash or other term.

Q. How can we make sure about the packaging machine quality after we put the order?

A: Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in Foshan city.

Q: How much about the disk turntable type automatic packaging machine?

A: The price is depends on the machine configuration.

Q: How many days after ordering the disk turntable packaging system?

A: If we have in stock, the packing machine can be ready less then 15 working days.

Q: What’s the package style your packaging system can make?

A: Pillow type package, three side sealed package.

Q: What is the packing material of the flow packing machine?

A: Plastic film (OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL), not the paper wrapping material.

Q: Can the disk turntable pacing line package different product size?

A: Yes, off course within our machine packing machine model range. Offer the size for our reference will be better.

Q:  How to clean the PU Belt of the food machinery?

A:  Use the alcohol cleans it.
