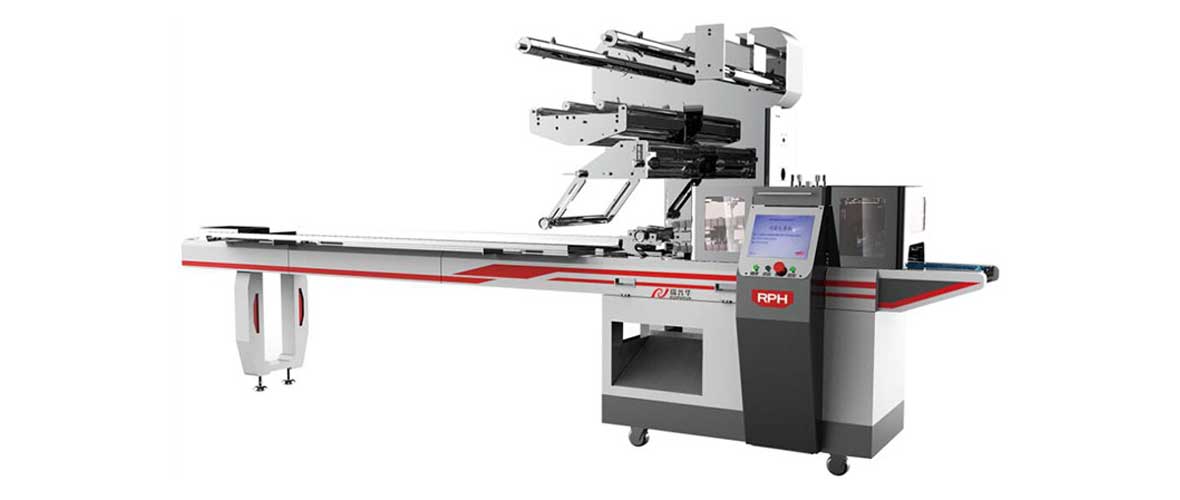

DESCRIPTION

1.Carton Opening Machine

1. Applicable carton size 280≦L≦500 160≦W≦400 510≦L+W≦1000 300≦H+W∕2≦620mm
2. table height 650mm
3. unpacking speed 8-10 boxes/min
4. Mechanical Dimensions L2050×W1950×H1450mm
5. power supply 220V/380V, 50Hz
6. Gas source 0.6Mpa, 10L/min

2.Roller Line

Stainless steel roller, outer diameter 50, wall thickness 1.5, roller center spacing 114. The frame side plate is made of t=3 thick stainless steel. Other parts refer to our standard configuration.



3.Robotic Carton Loading Unit

1. Packing speed 8 cases/min (example: packing machine 48 packs/min, 6 packs in one case)
2. Carton size  L430 × W280 × H210mm
3. Host power  3.6KW
4. Power type  220V, 50Hz
5. Machine noise ≤78dB
6. Air source  0.6Mpa, 40L/min
7. The weight of the parallel robot 72 Kg
8. Packing method  Suction cup grabbing
9. Parallel robot load  3Kg up to 5Kg


4.Carton Sealing Machine

Capacity:10-15 boxes/min

Carton size: L200-600 W120-500 H120-500 (mm)

Machine size: L1700 × W930 × 600 mm (can be designed according to customer requirements)

Equipment power: 0.4KW

Compressed air:0.4-0.6Mpa, 2L/min

Equipment weight :500Kg20221216175749746112.png5.Labeling Machine

  • Accuracy: ±1mm
  • Packing Speed: 80-150 pcs/min ( Depends on the product size and label size)
  • Label Size(L*W): Label length:20mm~300mm
  • Label width:  20mm~110mm
  • Dimension(L*W*H): 600mm×350mm×600mm

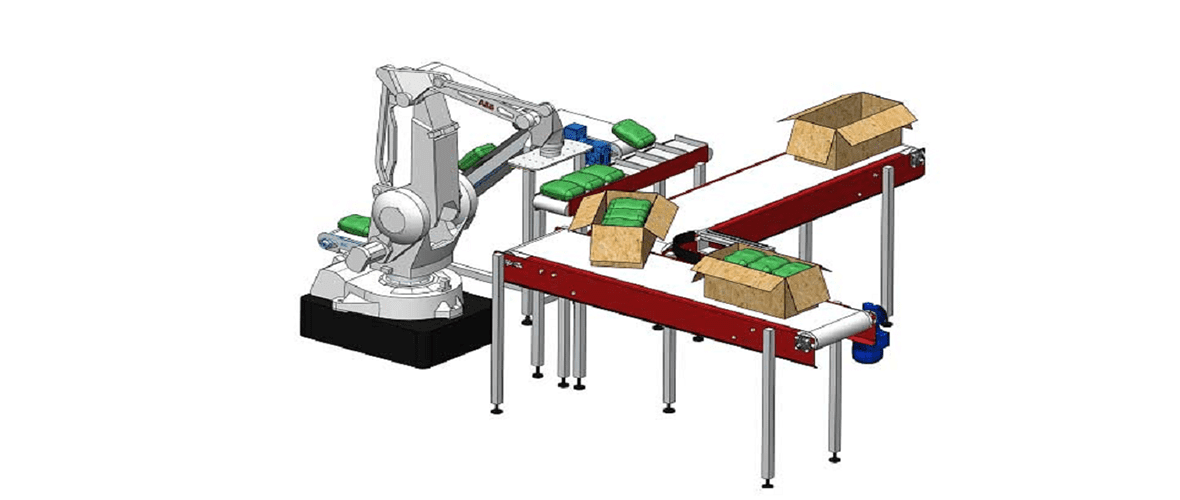

6.Robotic Palletizer

  • Equipment production capacity:The maximum production capacity is 10 boxes/min (one box, one grab and one release)
  • Freedom of movement: 6 axis
  •  Monitor rate: 3.3KW
  • Gas source: 0.6MPA.20L/MIN
  • Maximum load capacity: 20KG
  • Working radius: 1200MM
  • Maximum stacking height: The maximum height is 2100mm (including the pallet), and it can reach 1650mm when the maximum pallet size (1200×1200mm) is used. Box dimensions and variations in placement and fixtures may affect the actual stacking height.20221216180813668417.png
VIDEO
  • DESCRIPTION
  • VIDEO

1.Carton Opening Machine

1. Applicable carton size 280≦L≦500 160≦W≦400 510≦L+W≦1000 300≦H+W∕2≦620mm
2. table height 650mm
3. unpacking speed 8-10 boxes/min
4. Mechanical Dimensions L2050×W1950×H1450mm
5. power supply 220V/380V, 50Hz
6. Gas source 0.6Mpa, 10L/min

2.Roller Line

Stainless steel roller, outer diameter 50, wall thickness 1.5, roller center spacing 114. The frame side plate is made of t=3 thick stainless steel. Other parts refer to our standard configuration.



3.Robotic Carton Loading Unit

1. Packing speed 8 cases/min (example: packing machine 48 packs/min, 6 packs in one case)
2. Carton size  L430 × W280 × H210mm
3. Host power  3.6KW
4. Power type  220V, 50Hz
5. Machine noise ≤78dB
6. Air source  0.6Mpa, 40L/min
7. The weight of the parallel robot 72 Kg
8. Packing method  Suction cup grabbing
9. Parallel robot load  3Kg up to 5Kg


4.Carton Sealing Machine

Capacity:10-15 boxes/min

Carton size: L200-600 W120-500 H120-500 (mm)

Machine size: L1700 × W930 × 600 mm (can be designed according to customer requirements)

Equipment power: 0.4KW

Compressed air:0.4-0.6Mpa, 2L/min

Equipment weight :500Kg20221216175749746112.png5.Labeling Machine

  • Accuracy: ±1mm
  • Packing Speed: 80-150 pcs/min ( Depends on the product size and label size)
  • Label Size(L*W): Label length:20mm~300mm
  • Label width:  20mm~110mm
  • Dimension(L*W*H): 600mm×350mm×600mm


6.Robotic Palletizer

  • Equipment production capacity:The maximum production capacity is 10 boxes/min (one box, one grab and one release)
  • Freedom of movement: 6 axis
  •  Monitor rate: 3.3KW
  • Gas source: 0.6MPA.20L/MIN
  • Maximum load capacity: 20KG
  • Working radius: 1200MM
  • Maximum stacking height: The maximum height is 2100mm (including the pallet), and it can reach 1650mm when the maximum pallet size (1200×1200mm) is used. Box dimensions and variations in placement and fixtures may affect the actual stacking height.20221216180813668417.png
