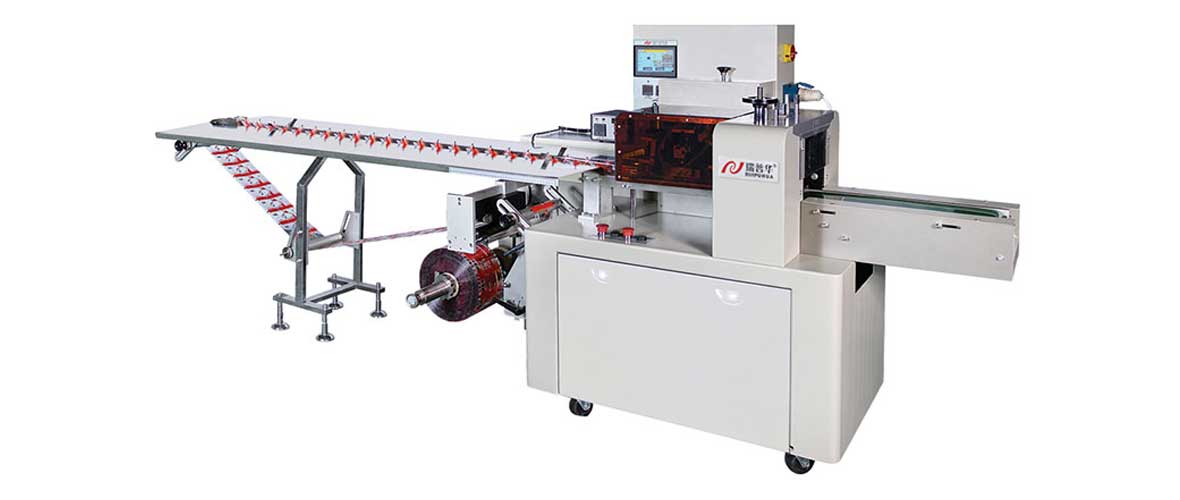

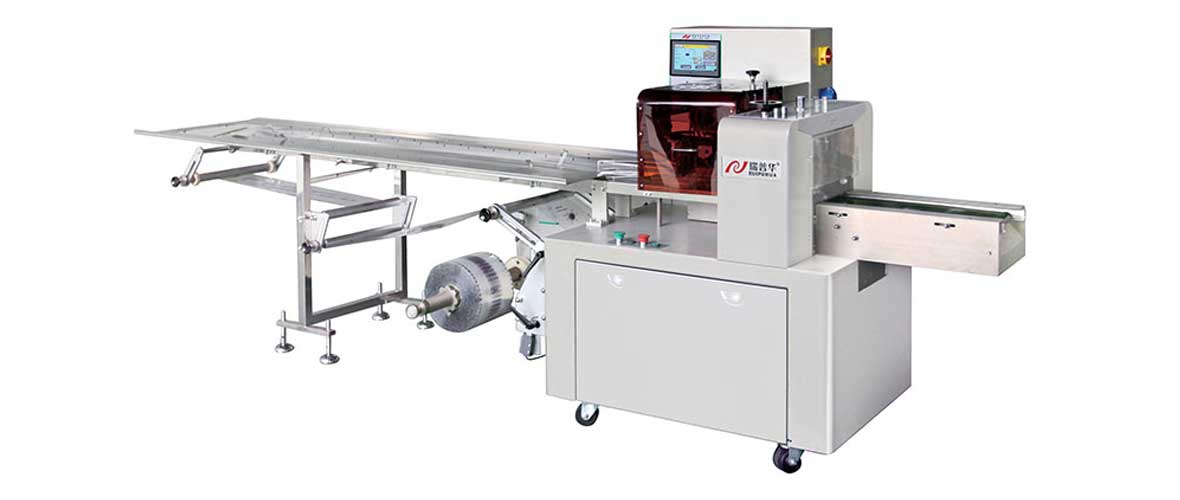

Automatic Dry Fruit Packaging Machine ZP-3000s

Automatic Dry Fruit Packaging Machine ZP-3000s
Automatic Dry Fruit Packaging Machine ZP-3000s
DESCRIPTION

1. Introduction of Automatic Dry Fruit Packaging Machine ZP-3000s

The automatic dry fruits packaging machine ZP-3000S adopts industry-leading electronic cam algorithm, and the bag lengths range from 90mm – infinite. Once the bag length is determined, it can be cut in one step, saving time and film.

2. Features of Automatic Dry Fruit Packaging Machine ZP-3000s

1. The plastic film packaging equipment detects and sets the bag length automatically.

2. The automatic dry fruit packaging machine is easy to maintain or change location, ensuring long life and hygiene.

3. Digital screen and transducer control the automatic dry fruit packaging machine to ensure easy operation.

4. Double transducer control with stepless speed shift and wide adjustment, can be perfectly matched with the previous process of the production line.

5. With menu storage and memory functions, the controller can save multiple sets of parameter configurations, and when the product or packaging film is changed, the formula can be used through the touch screen.

6. Advanced electronic anti-cutting, electronic anti-aircraft bag algorithm. The feed detection electric eye will automatically position the product, and the empty material film will stop, saving packaging materials.

7. Man-machine interface, convenient and quick parameter setting, automatic tracking of color code, automatic correction of cutting length. Digitally input the sealing and cutting position to make the sealing and cutting position more accurate.

8. The fault is automatically diagnosed, and the fault display is clear at a glance.

9. The standard horizontal sealing cutter shaft center distance is 132 double cutters, and the cutter distance can be changed to 114 or 90. According to the actual size of the product, when the product is small and the required packaging speed is high, the cutter distance of 114 or 90 can be selected.

PARAMETERS

Technical Parameters of ZP-3000S HFFS Machine

Machine Model

Automatic Dry Fruit Packaging Machine ZP-3000s

Packing speed

35-80 bags/min

Packing material

Plastic film (OPP/CPPPT/PEKOP/CPPALU-FOIL)

Bag style

Pillow type/fat pouch (3-side presealed)

Bag size (L*W*H)

90- unlimited,35-140mm,5-50mm

Film width

90-360mm

Packing Dimension  (L*W*H)

4000mm*950mm*1600mm

Heat power

3.8kw

Motor power

2.5kw

Total power

6.3 kw

Overall weight

630kg

FAQ

Q: What is difference between the upper film and down film packaging machine?

A: The most difference of the packaging machine is the film support location not the same. The application will be different also. The down film packaging machine normally use for the sticky product or secondary package.

Q: What is the main function of the temperature of date printer the wrapping machine?

A: Adjust the date printer temperature if the date is not very clear.

Steps: Please press the “set” button and the “50” signal will show. In that case you can add or reduce temperature by the right buttons.

Q: What’s the difference between the rotary type packaging machine and the box-motion type packaging machine?

A: Difference as below:

① Cutter type: The rotary type packaging machine cutter is rotary one, The box-motion packaging equipment is the box-motion type cutter.

② Machine parts: The cutter jaw unit of the box-motion type packaging equipment is imported from Taiwan.

③ Servo motor: The rotary type packaging machine is step motor, single servo motor, 2 servo motors and 3 servo motors are optional. The box-motion type packaging machine is 4 servo motors.

VIDEO
  • DESCRIPTION
  • PARAMETERS
  • FAQ
  • VIDEO

1. Introduction of Automatic Dry Fruit Packaging Machine ZP-3000s

The automatic dry fruits packaging machine ZP-3000S adopts industry-leading electronic cam algorithm, and the bag lengths range from 90mm – infinite. Once the bag length is determined, it can be cut in one step, saving time and film.

2. Features of Automatic Dry Fruit Packaging Machine ZP-3000s

1. The plastic film packaging equipment detects and sets the bag length automatically.

2. The automatic dry fruit packaging machine is easy to maintain or change location, ensuring long life and hygiene.

3. Digital screen and transducer control the automatic dry fruit packaging machine to ensure easy operation.

4. Double transducer control with stepless speed shift and wide adjustment, can be perfectly matched with the previous process of the production line.

5. With menu storage and memory functions, the controller can save multiple sets of parameter configurations, and when the product or packaging film is changed, the formula can be used through the touch screen.

6. Advanced electronic anti-cutting, electronic anti-aircraft bag algorithm. The feed detection electric eye will automatically position the product, and the empty material film will stop, saving packaging materials.

7. Man-machine interface, convenient and quick parameter setting, automatic tracking of color code, automatic correction of cutting length. Digitally input the sealing and cutting position to make the sealing and cutting position more accurate.

8. The fault is automatically diagnosed, and the fault display is clear at a glance.

9. The standard horizontal sealing cutter shaft center distance is 132 double cutters, and the cutter distance can be changed to 114 or 90. According to the actual size of the product, when the product is small and the required packaging speed is high, the cutter distance of 114 or 90 can be selected.

Technical Parameters of ZP-3000S HFFS Machine

Machine Model

Automatic Dry Fruit Packaging Machine ZP-3000s

Packing speed

35-80 bags/min

Packing material

Plastic film (OPP/CPPPT/PEKOP/CPPALU-FOIL)

Bag style

Pillow type/fat pouch (3-side presealed)

Bag size (L*W*H)

90- unlimited,35-140mm,5-50mm

Film width

90-360mm

Packing Dimension  (L*W*H)

4000mm*950mm*1600mm

Heat power

3.8kw

Motor power

2.5kw

Total power

6.3 kw

Overall weight

630kg

Q: What is difference between the upper film and down film packaging machine?

A: The most difference of the packaging machine is the film support location not the same. The application will be different also. The down film packaging machine normally use for the sticky product or secondary package.

Q: What is the main function of the temperature of date printer the wrapping machine?

A: Adjust the date printer temperature if the date is not very clear.

Steps: Please press the “set” button and the “50” signal will show. In that case you can add or reduce temperature by the right buttons.

Q: What’s the difference between the rotary type packaging machine and the box-motion type packaging machine?

A: Difference as below:

① Cutter type: The rotary type packaging machine cutter is rotary one, The box-motion packaging equipment is the box-motion type cutter.

② Machine parts: The cutter jaw unit of the box-motion type packaging equipment is imported from Taiwan.

③ Servo motor: The rotary type packaging machine is step motor, single servo motor, 2 servo motors and 3 servo motors are optional. The box-motion type packaging machine is 4 servo motors.
