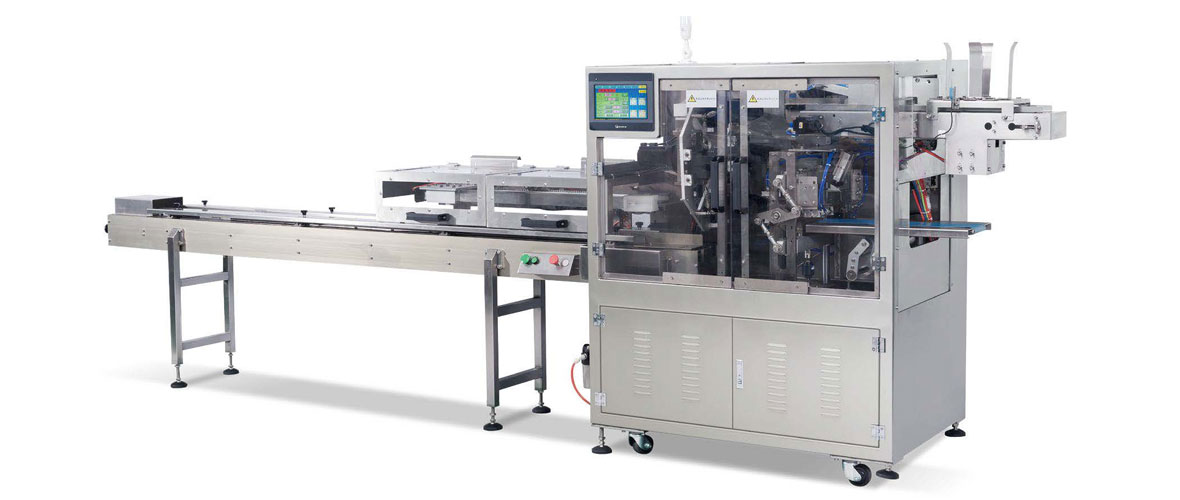

Automatic Pouch Filling Machine DKD60 (Straight Line Feeding Type)

1.  Introduction of Automatic Pouch Filling Machine DKD60

The automatic pouch filling machine is automatically feeding the bag, filling and packaging the goods. Generally used in bakeries, but also for secondary packaging or group packaging. The speed of automatic bagging equipment is about 50-60 bags per minute.

2. Features of Automatic Pouch Filling Machine DKD60

• The automatic pouch filling machine is composed of a feeding conveyor (or feeding belt), a pushing device, a turntable, a bag opening device, and a conveyor belt. Bag opening and bagging can be working at the same time, which is efficient and stable.

• Standard machine packaging size: 70-170(L) X 70(W) X 70(H) (the mold can be customized according to the product).

• Packaging form: prefabricated bag (flat bag, stand-up bag, zipper bag, M bag, etc.)

3. Advantages of Automatic Bagging Equipment DKD60

• The automatic pouch filling machine adopts linear or vertical belt stacking method to feed materials, which has a small footprint, saves plant space, and improves space utilization.

• Supporting fault automatic alarm tracking system, and real-time display of operating status.

• The automatic bagging equipment is designed with a 4-station structure and compact design. Control by PLC and large-screen touch screen with simple and convenient operation.

• Adopt a high-sensitivity electric eye to detect materials and bags open, realize no bags without pushing materials, anti-air bags and effectively reduce the rate of defective products.

• The main transmission system adopts servo positioning control, with accurate positioning, stable operation, and a low failure rate.

4. Application of Automatic Bagging Equipment DKD60

The automatic pouch filling machine is mainly for square toast and cake with a Prefabricated bag. The front end can be connected to the production line to realize automatic continuous feeding, automatic bagging, and packaging.

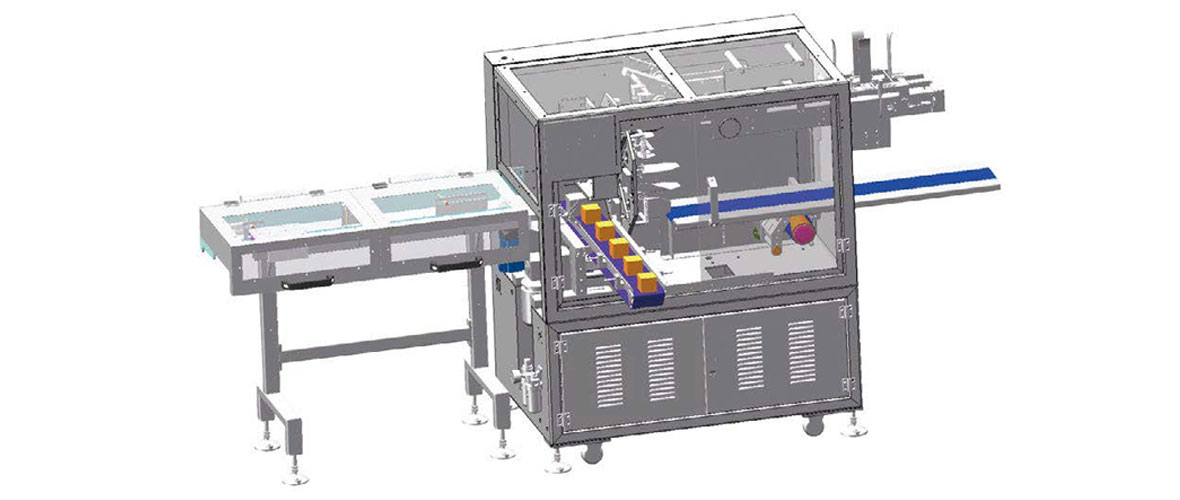

Automatic bagging feeding and packaging machine DKD60A (90-degree feeding)

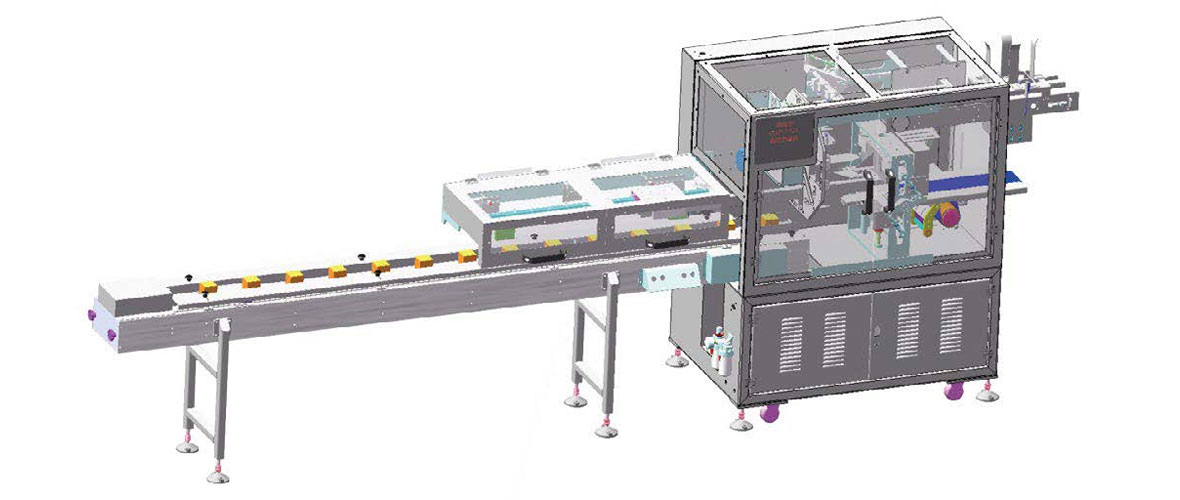

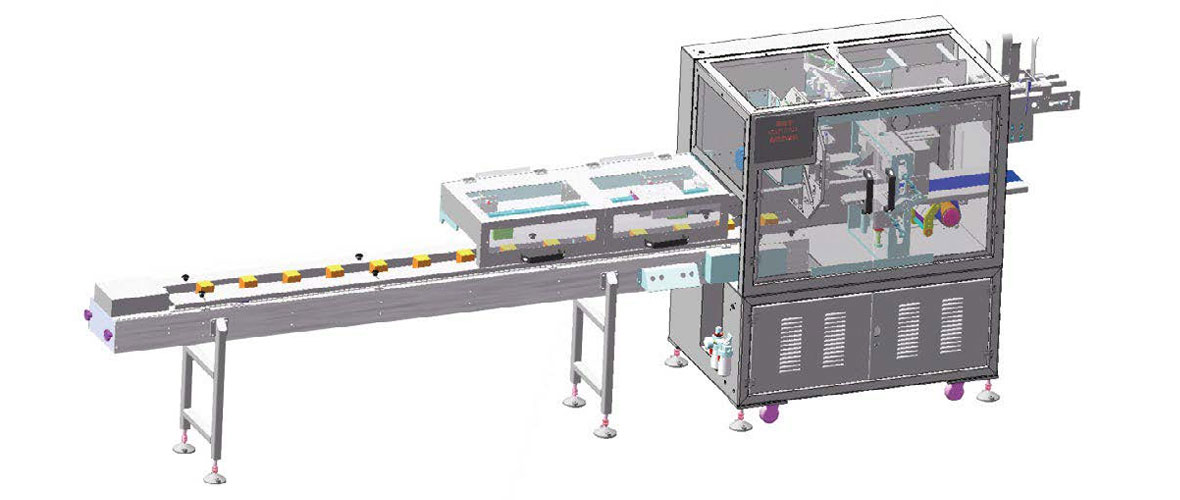

Automatic bagging feeding and packaging machine DKD60 (straight line feeding)

Q: How many types of automatic bagging machines?

A:

1. According to the feeding direction, the automatic bagging machine has two types. 90-degree feeling type and straight line one.

2. According to the seal, the automatic bagger machine has without sealing type and with sealing type. In other words, some customer do’t need sealing just want to feed the bag and fill the products, then can use the automatic bagging machine without sealing.

Q: How many parts the automatic bagging machine has?

A: Normally the automatic bagging machine has 5 parts.

1. Feeding conveyor.

2. Pushing device.

3. Turntable unit.

4. Bag opening device.

5. Output conveyor.

Q: Can we add one worker operation platform?

A: Yes. It’s optional.

Q: Have any special requirements for the prefabricated bag?

A: Exactly, the automatic bagging machine can use the flat bag, stand-up bag, zipper bag, and M bag.

Q: What kind of bag size will suitable for the automatic bagging machine?

A: For a standard bagging machine, the bag length: 70-170mm, width 70mm, and height 70mm. However, it can be customized.
