Candy Packaging Machine ZP-100

Candy Packaging Machine ZP-100
DESCRIPTION

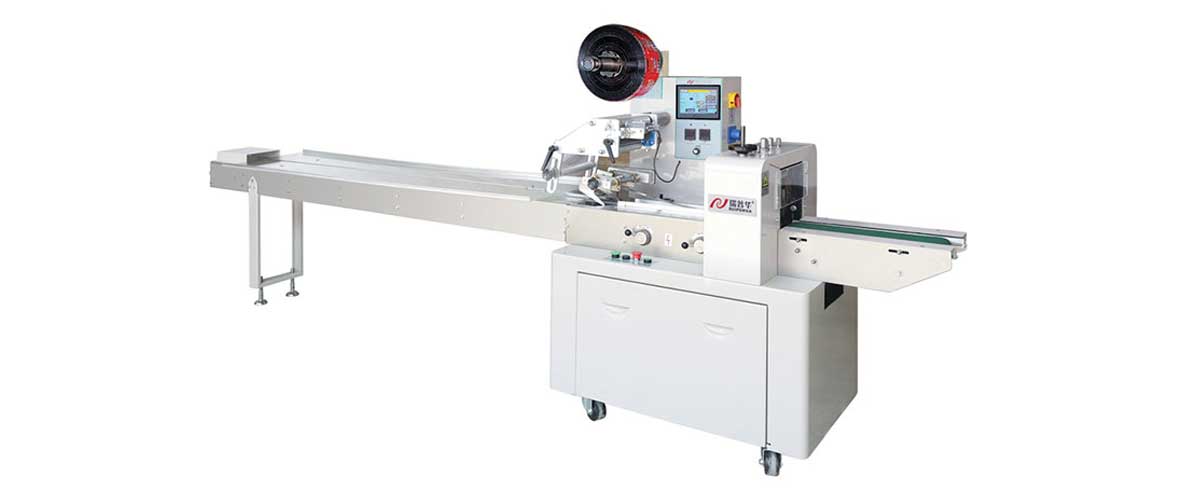

ZP-100 Horizontal Candy Packaging Machine with High Speed and CE

1. Introduction of the ZP-100 Candy Packaging Machine

This candy packaging machine ZP-100 is the first invented model, with a stable speed of 220 bags per minute. Horizontal packing using a single film coil with three weldings: two cross-weldings and one longitudinal welding. Automatic candy wrapping machine for high production.

2. Features of ZP-100 Candy Packaging Machine

(1) Automatic detect and set bag length without manual setting on the candy wrapping machine touch screen.

(2) Simple machine structure with flexible wheels, easy to maintain or change location. It guarantees a long life span and is hygienic.

(3) The single chip of the main control circuit developed by our company. Digital screen and transducer control guarantee convenient operation.

(4) Double transducer control with stepless speed shift and wide adjustment, can match well with the former working procedure of the production line.

(5) Highly sensitive detector automatically and accurately monitors the whole packaging procedure.

(6) Independent temperature control guarantees beautiful and tight sealing packages.

(7) Optional device: Date printer, air charging device, and servo motors.

(8) The cantilever design structure optimizes the hygiene and cleaning of the candy packaging machine.

(9) 2.5 m long infeed conveyor for packaging equipment.

(10) Top reel holder with self-centering reel fastening and braking system.

(11) Three pairs of rollers for pulling film and longitudinal seals.

(12) Rotating jaw sealing head with maximum flexibility.

(13) Mechanical gearbox adjusts bag length.

(14) Toothed shaft to be configured according to the product’s length.

(15) Safety covers with safety microswitch.

(16) 54 mm out-feed belt/finished belt of the candy wrapping machine.

(17) The candy packaging machine has intelligent temperature control, intuitive display, convenient setting, and accurate temperature.

3. Optional Device of the Packaging Equipment

(1) “No product – No bag” function.

(2) Extra meter of feeding conveyor.

(3) Photocell for centering printed film.

(4) Double reel holder.

(5) Date code printers.

(6) Gusseting device.

(7) Zig-zag cutting knives.

4. Candy Packaging Machine Details Introduction

A. Spool Holder / Film Real Support About Packaging Machine

The spool holder is self-centering and allows for easy film spool replacement.

Automatic double spool holders are available as an add-on option if a label applicator is not installed.

B. Seal Wheel About Packaging Machine

The electrical resistance system helps to avoid burning the film, even when the candy wrapping machine is not running.

The system is controlled by a digital temperature control with dual screen HMI for correcting asynchronies and reduces discrepancy to +/-2°C.

The rollers resistance system is activated by solid state relays.

The temperature control has multiple alarm signals to alert operators if issues arise.

Greasing points are centralized for easy maintenance.

The forming tunnel is universally adjustable for height and width.

C. Head-cutter About Packaging Machine

An easy-to-use electric button on the HMI is used to position the product with the head-cutter.

The temperature control is equipped with several alarm signals.

The cutting blade is fully adjustable.

Greasing points are centralized for easy maintenance.

The structure of the group is coated steel and the heat points are mechanically separated in order to allow for excellent heat dispersion.

The pressure dampener is adjustable by two springs.

The machine is equipped with safety devices to prevent damaging the mechanics. Sensitivity can be adjusted according to the product.

The controls allow for variable widths and heights of the products.

D. Control Panel

E. In-feed Conveyor

The in-feed conveyor has a total length of 2.5 meters and features stainless steel lateral guides that can be easily opened and cleaned. An optional in-feed conveyor that is 1000-3000 mm is also available.

The removable pushers are made from high-quality plastic and are certified for use with food products.

The product is transported by Teflon mats to avoid damage.

The bottom opening of the in-feed conveyor is hinged to provide easy access for cleaning.

PARAMETERS

Technical Parameters of Candy Packaging Machine ZP-100

Machine Model

Candy Packaging Machine ZP-100

Packing speed

35-150 bags/min

Packing material

Plastic film (OPP/CPPPT/PEKOP/CPPALU-FOIL)

Bag style

Pillow type/fat pouch (3-side presealed)

Bag size (L*W*H)

65-200mm,35-90mm,5-35mm

Film width

90-220mm

Packing Dimension  (L*W*H)

4200mm*1005mm*1470mm

Heat power

2.1kw

Motor power

0.55+0.75kw

Total power

3.4kw

Overall weight

550kg

FAQ

Q: What’s the packing material is suitable for our machine?

A: Opp / CPP、PT / PE、KOP / CPP、ALU-FOIL. You are always welcome to send us some samples for confirmation.

Q: What’s the thickness of the packaging film will be the best?

A: Normally around 3 micro mm – 6 micro mm.

VIDEO
