Checkweigher Machine
- DESCRIPTION

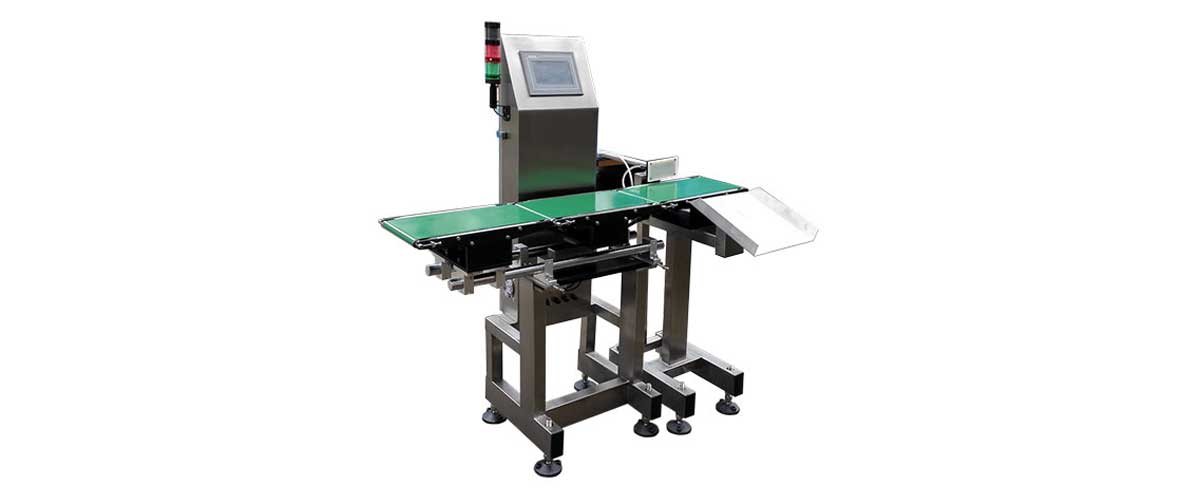

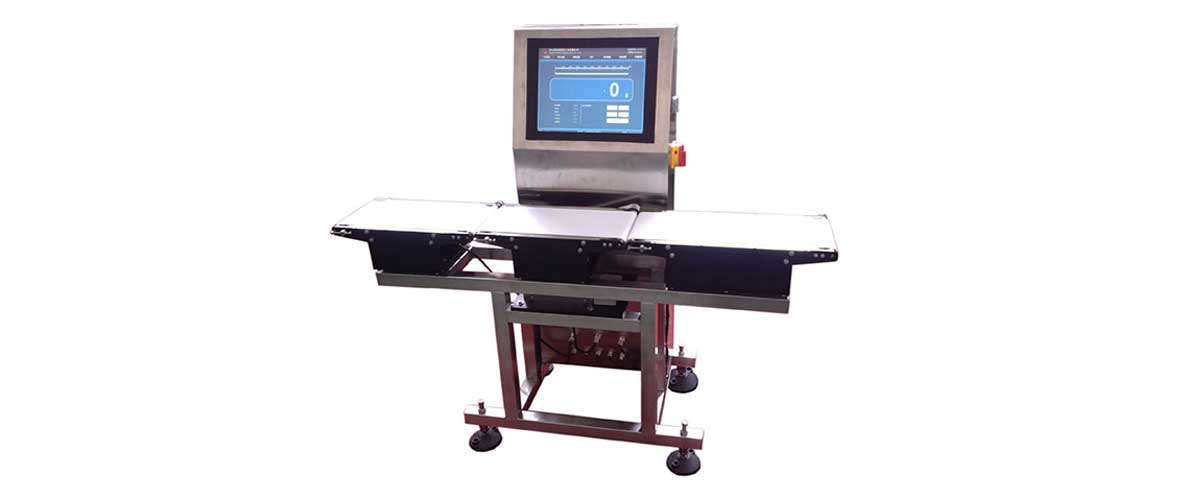

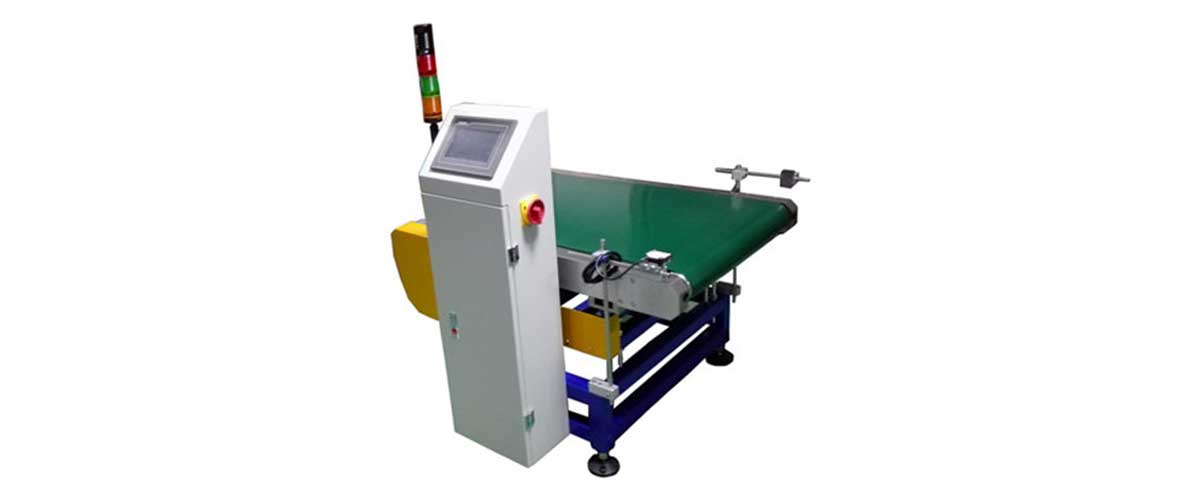

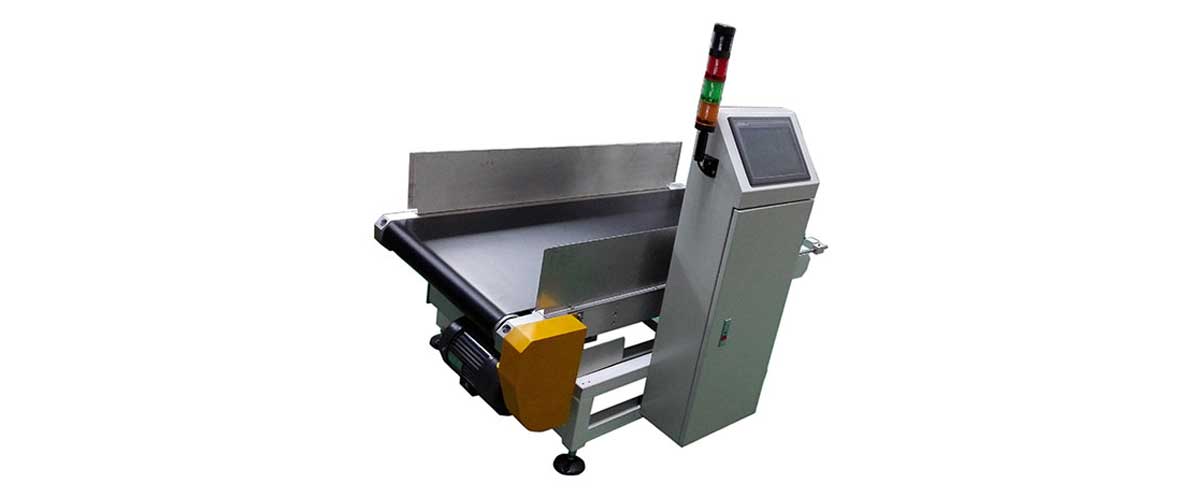

1. Product Introduction of Checkweigher Machine with Feeder and Rejector
The checkweigher machine detects the weight of the known objects. When the weight of the object exceeds the allowable upper and lower limits, the checkweigher system will automatically detect the out-of-tolerance, and can automatically remove it from the production process and give an alarm signal.
2. Characteristics and Structural Features of Checkweigher Machine
(1) The checkweigher machine is made of stainless steel with an open structure for easy and complete cleaning. The transmission structure can be easily disassembled without any tools, which simplifies the operation procedure and shortens the operation time.
(2) The 400 series checkweigher system is specially designed for a fully automatic packaging line, automatically removed from the production line when overweight and ultralight products are found.
(3) 400 series is a weight sorting machine that can reach up to 70-100 packages/min.
(4) The checkweigher system is equipped with an alarm with sound and light.
(5) The rejection device of the checkweigher machine is optional.
(6) There are two types of rejecters for the checkweigher machine, sink conveyor and pusher. Some time can use a robot system also.
(7) The electronic balance can record more than 100 kinds of products.
(8) Scale with 10.4 touch screen display, which can connect with scanner and date printer.
3. Application of Checkweigher Machine
The checkweigher machine is widely used in food, medicine, chemical industry, mechanical industrial and agricultural products, etc.
- PARAMETERS
Technical Parameters of Electronic Balance
Machine Model
Weight check 4001
Range
1G-1200G
Resolution rate
E=0.1 g
Accuracy
±0.5g
Speed
100bags/min
Former production line speed:
10-60 meters per minute Can be adjusted contiuously
Type
Maxium and minium set up. Three area with LED light alarm report the weight. RS232 communication joint
Operation screen
LCD（English/Chinese）
Belt width
230mm
Center distance of belt roller
425mm
Height
750-800mm
Output power
1000VA
Voltage
220V +-10%, 50 HZ, Single phrase
- FAQ
Q: What’s the main component of the weight checker?
A: The electronic balance is consist of conveyor, weighing sensor, display controller and eliminate equipment.
Q: What is the function of the weight scale display?
A: The scale display control instrument displays the gross weight, net weight, last weighing value, and the difference between the last weighing value and the set nominal value. You can also show the total number of weighing, the number of heavy pieces, the number of overweight, the number of qualified goods.
- VIDEO
- DESCRIPTION
- PARAMETERS
- FAQ
- VIDEO
1. Product Introduction of Checkweigher Machine with Feeder and Rejector
The checkweigher machine detects the weight of the known objects. When the weight of the object exceeds the allowable upper and lower limits, the checkweigher system will automatically detect the out-of-tolerance, and can automatically remove it from the production process and give an alarm signal.
2. Characteristics and Structural Features of Checkweigher Machine
(1) The checkweigher machine is made of stainless steel with an open structure for easy and complete cleaning. The transmission structure can be easily disassembled without any tools, which simplifies the operation procedure and shortens the operation time.
(2) The 400 series checkweigher system is specially designed for a fully automatic packaging line, automatically removed from the production line when overweight and ultralight products are found.
(3) 400 series is a weight sorting machine that can reach up to 70-100 packages/min.
(4) The checkweigher system is equipped with an alarm with sound and light.
(5) The rejection device of the checkweigher machine is optional.
(6) There are two types of rejecters for the checkweigher machine, sink conveyor and pusher. Some time can use a robot system also.
(7) The electronic balance can record more than 100 kinds of products.
(8) Scale with 10.4 touch screen display, which can connect with scanner and date printer.
3. Application of Checkweigher Machine
The checkweigher machine is widely used in food, medicine, chemical industry, mechanical industrial and agricultural products, etc.
Technical Parameters of Electronic Balance
|
Machine Model |
Weight check 4001 |
|
Range |
1G-1200G |
|
Resolution rate |
E=0.1 g |
|
Accuracy |
±0.5g |
|
Speed |
100bags/min |
|
Former production line speed: |
10-60 meters per minute Can be adjusted contiuously |
|
Type |
Maxium and minium set up. Three area with LED light alarm report the weight. RS232 communication joint |
|
Operation screen |
LCD（English/Chinese） |
|
Belt width |
230mm |
|
Center distance of belt roller |
425mm |
|
Height |
750-800mm |
|
Output power |
1000VA |
|
Voltage |
220V +-10%, 50 HZ, Single phrase |
Q: What’s the main component of the weight checker?
A: The electronic balance is consist of conveyor, weighing sensor, display controller and eliminate equipment.
Q: What is the function of the weight scale display?
A: The scale display control instrument displays the gross weight, net weight, last weighing value, and the difference between the last weighing value and the set nominal value. You can also show the total number of weighing, the number of heavy pieces, the number of overweight, the number of qualified goods.
