DESCRIPTION

1. Introduction of Cracker Automatic Food Packaging Equipment

The packaging speed of the cracker automated food packaging equipment can reach 250 bags per minute. This automated food packaging equipment can be connected with the cracker processing machine to feed the product automatically and continuously to realize the composite packaging of two or more pieces.

2. Main Functions of Automated Food Packaging Equipment

  • This packaging solution is equipped with a weight checker, metal detector, and automatic tray sucking and loading unit.
  • The automatic feeding & packing line includes the separating conveyor, vibrating feeder, multi-belt conveyor, vibrating conveyor, biscuits feeder, and automatic packaging machine.
  • Single line packing speed can reach 180-250 bags/min. Depends on the size of the product and the characteristics of the packaging film.
  • The whole system adopts 220V, 50HZ, single phase. Total Power is 28KW (five lines as drawing).

3. Advantages of Automated Food Packaging Equipment

  • The feeding and packaging line is equipped with 304 stainless steel baffle, motive PU baffle, or nylon baffle, easy to operate and clean.
  • The packaging system equipped with a food-grade blue anti-microbial PU belt, anti-sticking belt, and white PU belt is also optionally available.
  • PU belts can be discharged without tools and are equipped with a hopper to get product waste, which is easy for cleaning and maintain the packaging system.
  • The automated food packaging equipment has the features of large capacity and continuous production without stopping.
  • The crumble slots are installed under the vibrating conveyor, easy to maintain and saves time and effort.
  • The control system of the automated food packaging equipment uses high-quality electronic intelligent PLC, touch screens, and good HMI, operating more simply and conveniently.

4. Application of Automated Food Packaging Equipment

The automated food packaging equipment is applicable for packing biscuits, cookies, walnut cakes, crackers, digestive biscuits, and other regular shape objects. Connected with former production line by the automatic feeder, to achieve single-chip, overlay (2-4), multi-heaps packaging form.

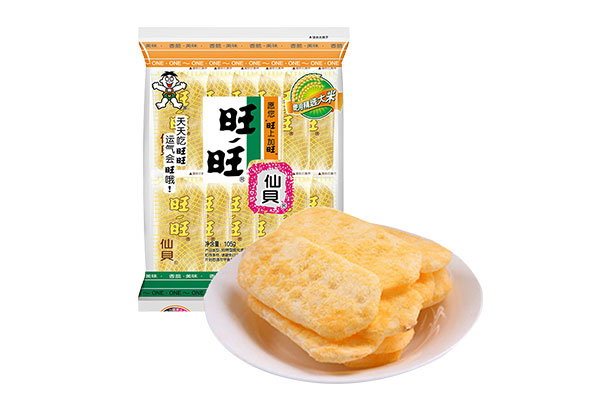

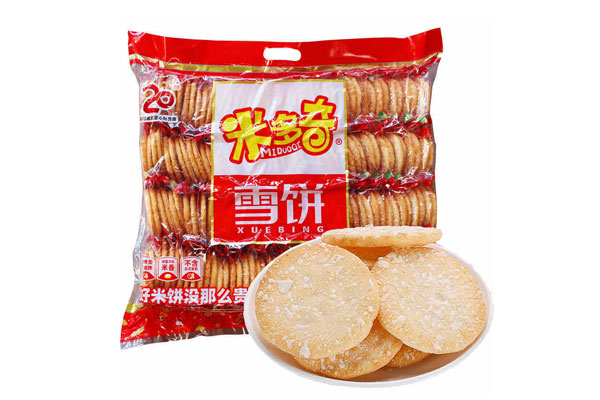

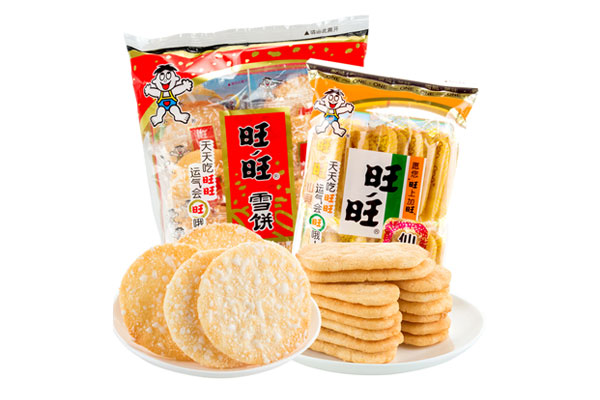

5. Packaging Samples




PARAMETERS

Packaging Machine Model Suggest

A. Rotary Type Packaging Machine

Machine Model ZP-500 horizontal packaging machine ZP-500SG packaging machine

(3 Servo controlled Double cutter)

ZP-500SG packaging machine

(3 Servo controlled Single cutter)

Packing speed 35-300 bags/min 35-300 bags/min 35-200 bags/min
Packing material Plastic film (OPP/CPPPT/PEKOP/CPPALU-FOIL)
Bag style Pillow type/fat pouch (3-side presealed)
Bag size (L*W*H) 85mm-230mm, 20-90mm,5-50mm 60mm- infinite, 30-150mm,5-50mm 80mm- infinite, 30-150mm,5-55mm
Film width 66-400mm
Packing Dimension  (L*W*H) 4000mm*770mm*1600mm 4000mm*900mm*1600mm
Heat power 3.1kw 3.8kw 2.4kw
Motor power 0.55+0.75kw 2.5kw
Total power 5.6 kw 6.3kw 4.9kw
Overall weight

630kg

B. Box-motion Type Packaging Machinery

No. Items

Model

RD-BM-508S Box-motion Servo Packaging Machine

1

Bag former(mm)

W100-200mmHMax 100mm — Big former

W50-100mmHMax 70mm — Small former

2

Bag length

Small outer diameter 80-400mm; Large outer diameter 100-400mm

3

Film Width 100-500mm

4

Packing Speed 60-80bags/minute

5

Packing material OPP or CPP / OPP+CPP/PET+CPP/PET+LLDPE/PET+VMCPP

6

Machine size  L4000*W1139*H1680mm

7

Total Power 3.5KW

8

Voltage Single phase 220V  50/60HZ  Air pressure:0.6MPA

9

Overall Weight 1000KG

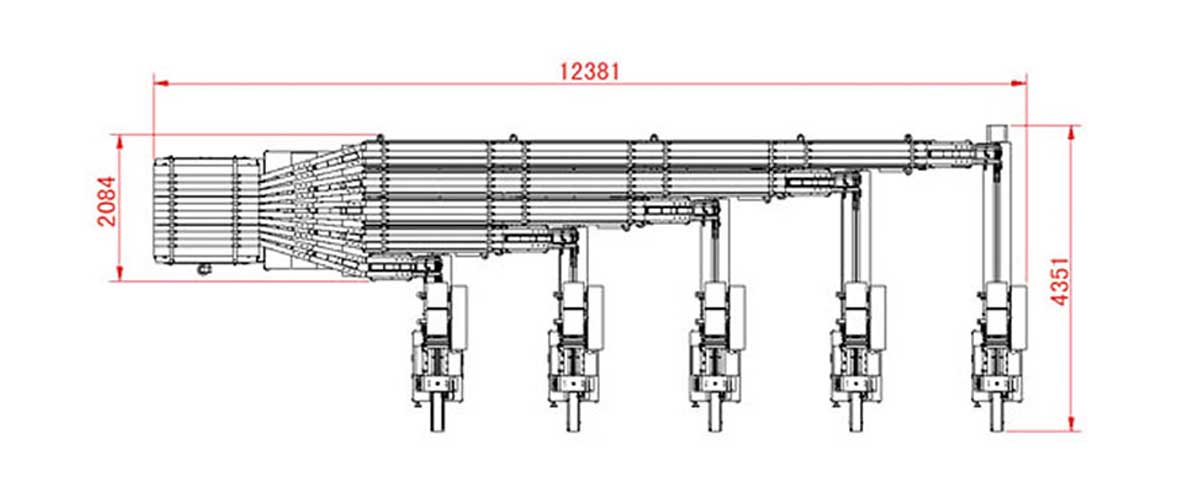

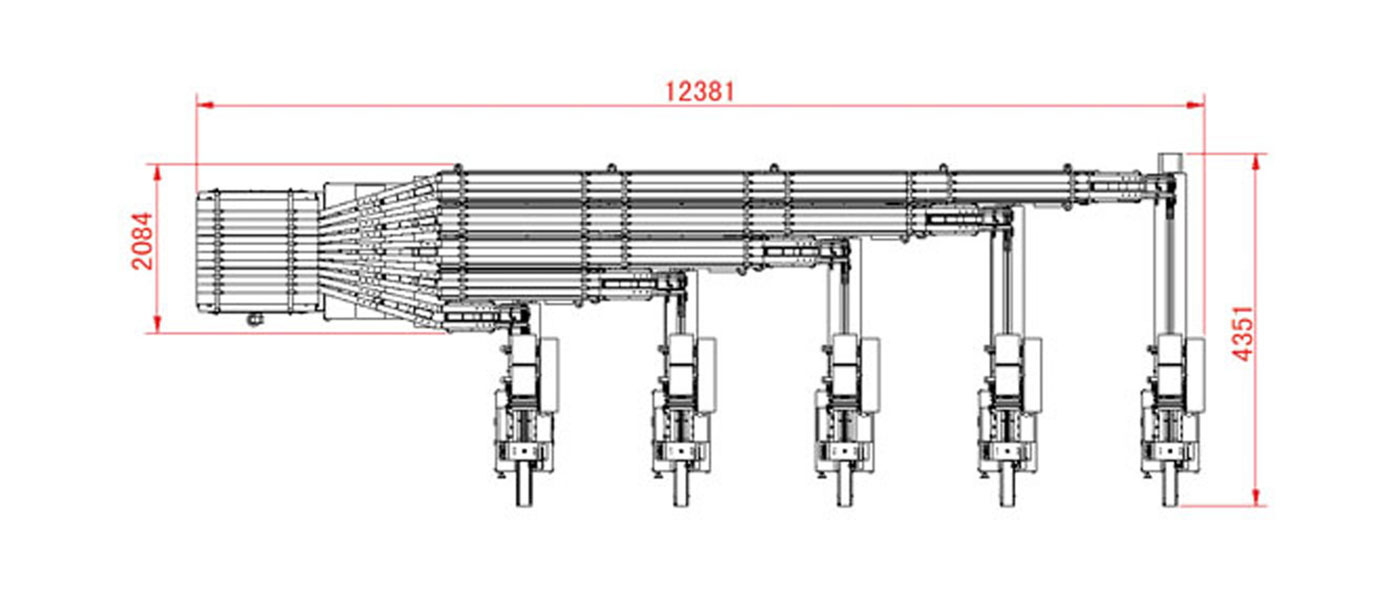

DRAWING


FAQ

FAQ About Packaging Machinery:

Q: What’s the difference between the rotary type packaging machine and the box-motion type packaging machine?

A: Difference as below:

① Cutter type: The rotary type packaging machine cutter is rotary one, The box-motion packaging equipment is the box-motion type cutter.

② Machine parts: The cutter jaw unit of the box-motion type packaging equipment is imported from Taiwan.

③ Servo motor: The rotary type packaging machine is step motor, single servo motor, 2 servo motors and 3 servo motors are optional. The box-motion type packaging machine is 4 servo motors.

Q: Do we need a spare packing line?

A: Yes if you have enough space. Because it will affect your production if some machine need maintenance, it’s better to have one spare packaging line.

Q: What’s the application of biscuit automatic packaging system?

A: It designed for packing biscuit industry, such as biscuit, cookies,walnut cake, cracker biscuit, sandwich biscuit and other regular shape objects.

Q: What’s the difference between the sink type packaging system and the bread automatic packaging line?

A: The difference between the sink type packaging system and the bread packaging line is as below:

① Structure different:  the sink type packaging system has the sink type conveyor, but the bread packaging line just have the transit conveyor.

② Product application: The sink type packaging system is suitable for those products come out in order or soft product, such as the swiss roll, layer cake, steamed cake and muffin. The bread packaging line is for those products come out disorders.

Q: Can the packing system pack two layer biscuit, like 2 piles and each pile two piece?

A: Yes. Add the biscuit lamination device.

Q: How many lines we need for our biscuit production?

A: It depends on the production line capacity, and our single packing line maximum speed is 150-180 bags per minute per line.

Q: Could our biscuit packaging solution can package 4 pieces (1 pile*4)biscuit?

A: Yes, just add some laminating device.

Q: What’s size of our standard cracker biscuit packaging lines?

A: The standard biscuit packaging system total is 5 lines, in order words, 5 sets of packaging machine. Total length need 12381mm, width needs 4351mm.

However, we can design the packaging system according to your biscuit size, character, biscuit package style, capacity and factory layout.

Q: What is the capacity of the cracker biscuit packaging system?

A: Depends on the cracker biscuit package style. If package type is one piece per bag, the packaging speed of each line can up to 100-250bags per minute. And the standard 5 biscuit packaging lines are 500-1250 pieces per minute.

Q: Could we add metal checker and weight checker to our packaging solution?

A: Yes.

Q: What information need to offer for biscuit packaging solution?

A: Need the following information for the biscuit packaging solution:

① Biscuit information, such as biscuit size, character, shape and biscuit pictures.

② Biscuit package style: how many pieces per minute? How them in the package?

VIDEO
  • DESCRIPTION
  • PARAMETERS
  • DRAWING
  • FAQ
  • VIDEO

1. Introduction of Cracker Automatic Food Packaging Equipment

The packaging speed of the cracker automated food packaging equipment can reach 250 bags per minute. This automated food packaging equipment can be connected with the cracker processing machine to feed the product automatically and continuously to realize the composite packaging of two or more pieces.

2. Main Functions of Automated Food Packaging Equipment

  • This packaging solution is equipped with a weight checker, metal detector, and automatic tray sucking and loading unit.
  • The automatic feeding & packing line includes the separating conveyor, vibrating feeder, multi-belt conveyor, vibrating conveyor, biscuits feeder, and automatic packaging machine.
  • Single line packing speed can reach 180-250 bags/min. Depends on the size of the product and the characteristics of the packaging film.
  • The whole system adopts 220V, 50HZ, single phase. Total Power is 28KW (five lines as drawing).

3. Advantages of Automated Food Packaging Equipment

  • The feeding and packaging line is equipped with 304 stainless steel baffle, motive PU baffle, or nylon baffle, easy to operate and clean.
  • The packaging system equipped with a food-grade blue anti-microbial PU belt, anti-sticking belt, and white PU belt is also optionally available.
  • PU belts can be discharged without tools and are equipped with a hopper to get product waste, which is easy for cleaning and maintain the packaging system.
  • The automated food packaging equipment has the features of large capacity and continuous production without stopping.
  • The crumble slots are installed under the vibrating conveyor, easy to maintain and saves time and effort.
  • The control system of the automated food packaging equipment uses high-quality electronic intelligent PLC, touch screens, and good HMI, operating more simply and conveniently.

4. Application of Automated Food Packaging Equipment

The automated food packaging equipment is applicable for packing biscuits, cookies, walnut cakes, crackers, digestive biscuits, and other regular shape objects. Connected with former production line by the automatic feeder, to achieve single-chip, overlay (2-4), multi-heaps packaging form.

5. Packaging Samples




Packaging Machine Model Suggest

A. Rotary Type Packaging Machine

Machine Model ZP-500 horizontal packaging machine ZP-500SG packaging machine

(3 Servo controlled Double cutter)

ZP-500SG packaging machine

(3 Servo controlled Single cutter)

Packing speed 35-300 bags/min 35-300 bags/min 35-200 bags/min
Packing material Plastic film (OPP/CPPPT/PEKOP/CPPALU-FOIL)
Bag style Pillow type/fat pouch (3-side presealed)
Bag size (L*W*H) 85mm-230mm, 20-90mm,5-50mm 60mm- infinite, 30-150mm,5-50mm 80mm- infinite, 30-150mm,5-55mm
Film width 66-400mm
Packing Dimension  (L*W*H) 4000mm*770mm*1600mm 4000mm*900mm*1600mm
Heat power 3.1kw 3.8kw 2.4kw
Motor power 0.55+0.75kw 2.5kw
Total power 5.6 kw 6.3kw 4.9kw
Overall weight

630kg

B. Box-motion Type Packaging Machinery

No. Items

Model

RD-BM-508S Box-motion Servo Packaging Machine

1

Bag former(mm)

W100-200mmHMax 100mm — Big former

W50-100mmHMax 70mm — Small former

2

Bag length

Small outer diameter 80-400mm; Large outer diameter 100-400mm

3

Film Width 100-500mm

4

Packing Speed 60-80bags/minute

5

Packing material OPP or CPP / OPP+CPP/PET+CPP/PET+LLDPE/PET+VMCPP

6

Machine size  L4000*W1139*H1680mm

7

Total Power 3.5KW

8

Voltage Single phase 220V  50/60HZ  Air pressure:0.6MPA

9

Overall Weight 1000KG


FAQ About Packaging Machinery:

Q: What’s the difference between the rotary type packaging machine and the box-motion type packaging machine?

A: Difference as below:

① Cutter type: The rotary type packaging machine cutter is rotary one, The box-motion packaging equipment is the box-motion type cutter.

② Machine parts: The cutter jaw unit of the box-motion type packaging equipment is imported from Taiwan.

③ Servo motor: The rotary type packaging machine is step motor, single servo motor, 2 servo motors and 3 servo motors are optional. The box-motion type packaging machine is 4 servo motors.

Q: Do we need a spare packing line?

A: Yes if you have enough space. Because it will affect your production if some machine need maintenance, it’s better to have one spare packaging line.

Q: What’s the application of biscuit automatic packaging system?

A: It designed for packing biscuit industry, such as biscuit, cookies,walnut cake, cracker biscuit, sandwich biscuit and other regular shape objects.

Q: What’s the difference between the sink type packaging system and the bread automatic packaging line?

A: The difference between the sink type packaging system and the bread packaging line is as below:

① Structure different:  the sink type packaging system has the sink type conveyor, but the bread packaging line just have the transit conveyor.

② Product application: The sink type packaging system is suitable for those products come out in order or soft product, such as the swiss roll, layer cake, steamed cake and muffin. The bread packaging line is for those products come out disorders.

Q: Can the packing system pack two layer biscuit, like 2 piles and each pile two piece?

A: Yes. Add the biscuit lamination device.

Q: How many lines we need for our biscuit production?

A: It depends on the production line capacity, and our single packing line maximum speed is 150-180 bags per minute per line.

Q: Could our biscuit packaging solution can package 4 pieces (1 pile*4)biscuit?

A: Yes, just add some laminating device.

Q: What’s size of our standard cracker biscuit packaging lines?

A: The standard biscuit packaging system total is 5 lines, in order words, 5 sets of packaging machine. Total length need 12381mm, width needs 4351mm.

However, we can design the packaging system according to your biscuit size, character, biscuit package style, capacity and factory layout.

Q: What is the capacity of the cracker biscuit packaging system?

A: Depends on the cracker biscuit package style. If package type is one piece per bag, the packaging speed of each line can up to 100-250bags per minute. And the standard 5 biscuit packaging lines are 500-1250 pieces per minute.

Q: Could we add metal checker and weight checker to our packaging solution?

A: Yes.

Q: What information need to offer for biscuit packaging solution?

A: Need the following information for the biscuit packaging solution:

① Biscuit information, such as biscuit size, character, shape and biscuit pictures.

② Biscuit package style: how many pieces per minute? How them in the package?
