Group Toast / Hamburger Packaging Machine

Group Toast / Hamburger Packaging Machine
Group Toast / Hamburger Packaging Machine

1. Introduction of Group Toast / Hamburger Packaging Machine

The group toast/hamburger packaging machine is mainly suitable for the packaging of toast or hamburgers with multi-row multi-line. The front end can be connected to the production line to realize automatic continuous feeding or manual feeding. This type of group toast/hamburger packaging machine is designed for group packages. The speed of the toast packaging machine can reach 30-40 bags per minute.

2. Main Functions and Structure Characteristics of Group Toast / Hamburger Packaging Machine

(1) Distance controller

The main function of the distance controller is to pull over the product distance or keep them in rows.

(2) Transit conveyor

This transit conveyor of the packaging solution is used to deliver products into different packaging lines.

(3) C belt

The main function of the C Belt is to transfer products to the sorting unit and change product directions.

(4) Sorting unit

Sorting unit of packaging system introduction:

The sorting unit parts consist of 2 conveyor belts and 5-6 sensors.

The functions of the sorting unit:

The main function of this sorting unit is to control the product feeding speed, located it, and connect it to the toast packaging machine automatically. Once it detected the product too much, the feeding speed will slow down, if lack of product, then the feeding speed will speak up soon.

Advantages of the sorting unit:

Reducing human operation and making sure the toast packaging machine running at a stable speed with less product wastes.1. Sorting unit of packaging system introduction: The sorting unit parts is consist of 2 conveyor belts and 5-6 sensors.





3. Packaging Samples

Packaging Samples

Packaging Samples


Rotary Type Packaging Machine

Machine Model

ZP-500 horizontal packaging machine

ZP-500SG packaging machine

(3 Servo controlled Double cutter)

ZP-500SG packaging machine

(3 Servo controlled Single cutter)

Packing speed

35-300 bags/min

35-300 bags/min

35-200 bags/min

Packing material


Bag style

Pillow type/fat pouch (3-side presealed)

Bag size (L*W*H)

85mm-230mm, 20-90mm,5-50mm

60mm- infinite, 30-150mm,5-50mm

80mm- infinite, 30-150mm,5-55mm

Film width


Packing Dimension  (L*W*H)



Heat power




Motor power



Total power

5.6 kw



Overall weight


Box-Motion Type Packaging Machine




Group Toast / Hamburger Packaging Machine


Bag former(mm)

W100-200mmHMax 100mm  -- Big former

W50-100mmHMax 70mm    --- Small former


Bag length

Small outer diameter 80-400mm; Large outer diameter 100-400mm


Film Width



Packing Speed



Packing material



Machine size



Total Power




Single phase 220V  50/60HZ  Air pressure:0.6MPA


Overall Weight


Box-Motion Type Packaging Machine

Box-Motion Type Packaging Machine

Box-Motion Type Packaging Machine

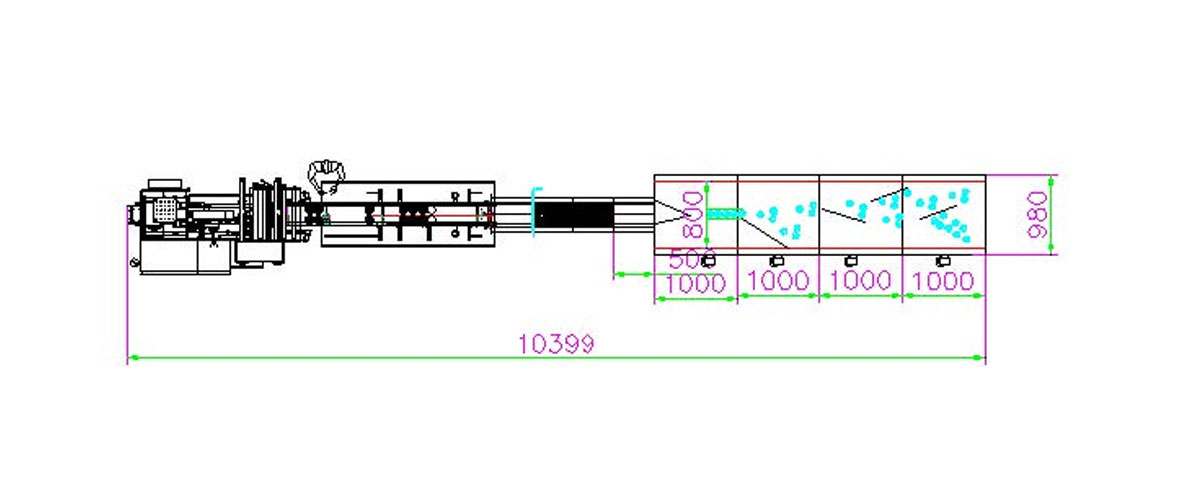

Group bread/hamburger packaging solution drawing

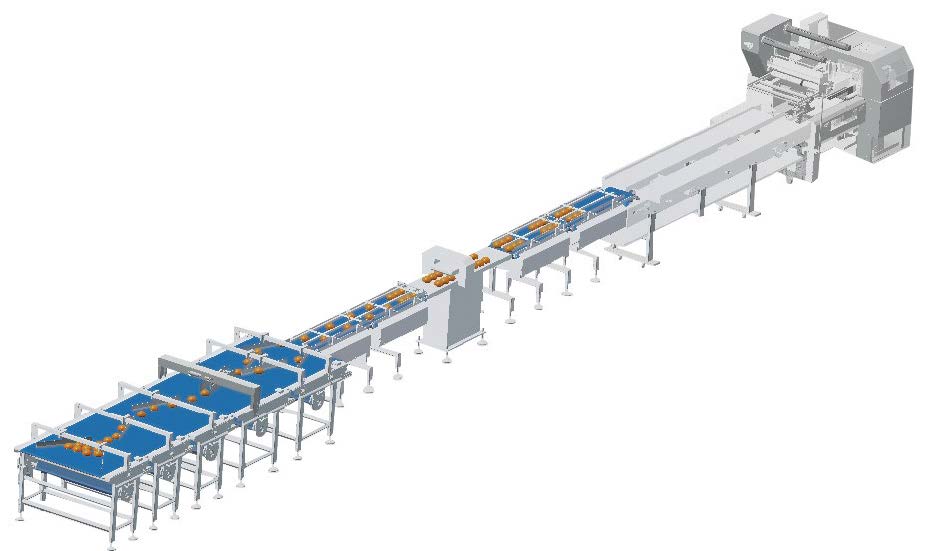

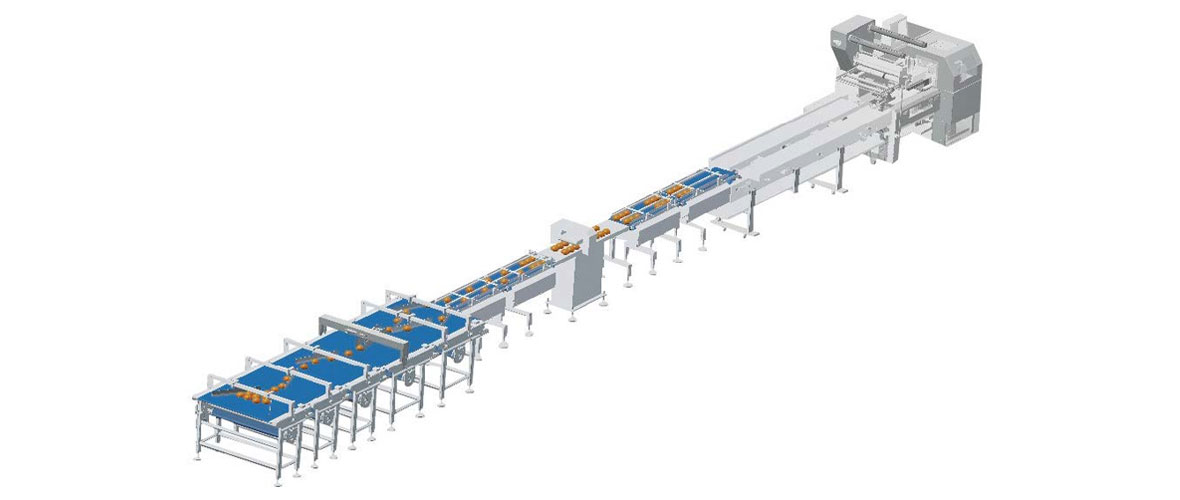

Group bakery packaging system


FAQ of Bread Packaging System

Q: What is the purity of the nitrogen generator if we need it for our bread packaging system?

A: About 99.5% and the capacity have 3 Nm³/h ,5 Nm³/h and 10Nm³/h, which depends on the number of packaging line you needs.

Q: Could we change the packing system direction or location?

A: Yes. You just change it conveniently by wheels. What’s more, the whole packing system is combined with different unit, which is easy to move it.

Q: For the big size product, which packing model suggested for us?

A: Depends on the product size, so you offer the size to us will be better. Normally, we have 2 kinds packing equipment suitable for you.

① Rotary type packing equipment, such as ZP-500SG.

② Box-motion packing machine, such as RD-BM-508S.

Q: What’s the belt size of automatic packaging system?

A: The standard automatic packaging system belt size is 1000mm width and height 1000mm, but it can be customized.

Q: What kind of information I need to offer if we want to buy this automatic packaging system?

A: Product size and pictures, package details, capacity, factory layout in CAD format and wafer production video.

Q: Could you help us adding the finished conveyor to deliver the wafer package into another room for carton packages?

A: Yes, of course. We are professional in designing the food packaging factory, considering the product flow, worker operation direction and passageway.

Q: Can your machine meet our needs well?

A:  After receiving your inquiry, please kindly consult us and providing following information:

- The soap bar size,including the length, width and thickness.

-Package information. How many pieces per bag?

- Do you want semi-automatic packing machine or fully automatic packing machine?

- Capacity of your production.

Then our engineer will make the suitable packaging solutions according to your specific requirement. Every machine is customized to meet your needs well.

Q: Are you packaging machine factory or trading company?

A: We are the factory, and especially R&D, manufacture and sell various packing requirements. We have engaged in the packing R&D and production near 20 years.

Q. What's your payment way?

A: T/T, West Union, pay in cash or other term.

Q. How can we make sure about the packaging machine quality after we put the order?

A: Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in Foshan city.

Q: How much about the disk turntable type automatic packaging machine?

A: The price is depends on the machine configuration.

Q: How many days after ordering the disk turntable packaging system?

A: If we have in stock, the packing machine can be ready less then 15 working days.

Q: What’s the package style your packaging system can make?

A: Pillow type package, three side sealed package.

Q: What is the packing material of the flow packing machine?

A: Plastic film (OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL), not the paper wrapping material.

Q: Can the disk turntable pacing line package different product size?

A: Yes, off course within our machine packing machine model range. Offer the size for our reference will be better.

Q:  How to clean the PU Belt of the food machinery?

A:  Use the alcohol cleans it.
