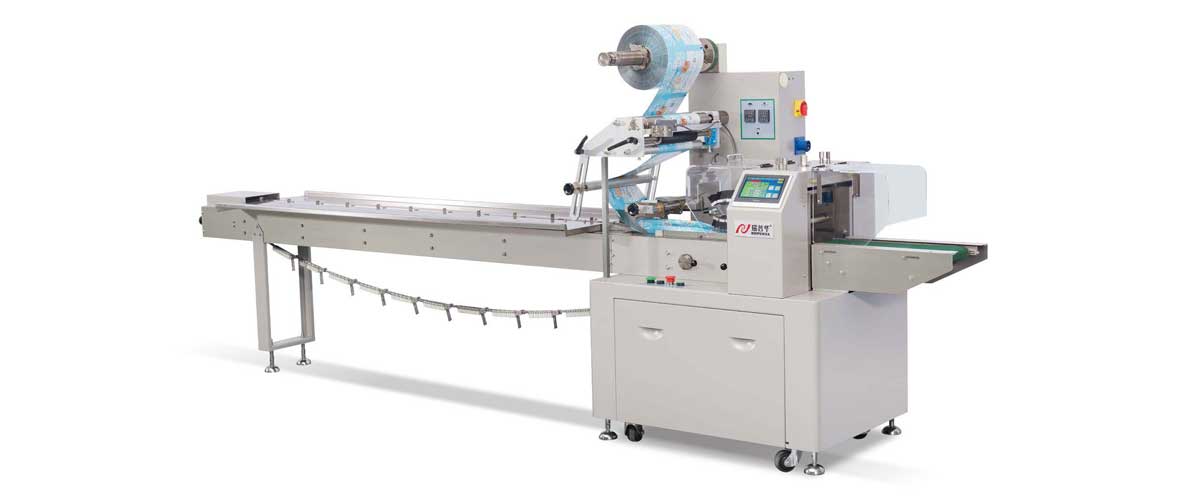

1. Introduction of Servo Packaging Machine for Food Products ZP-480S

Flow wrapping or horizontal form fill seal (HFFS) is the process of making a horizontal bag from a single roll of film. Heat is applied to the bottom and ends of the film to form a sealed, flexible package already filled with products. Servo Packaging Machine for Food Products ZP-480S is suitable for a variety of products.

2. Features of Servo Packaging Machine for Food Products ZP-480S

  • With menu storage memory function, can use the memory formula from the touch screen according to different products or packaging film.

  • With the industry-leading electronic cam algorithm, bag length range from 60 mm to infinite. The bag's actual length takes effect immediately after setting, saving time, and packaging film.

  • Advanced algorithm for preventing cutting products and empty bags. Packaging film stops feeding when no product, saves materials.

  • The horizontal sealer, vertical sealer, and product feeding are controlled by an independent servo motor. The mechanical structure is simple, the operation is stable and small noise.

  • The packaging machine for food products can track the feeding speed automatically when connected to the line. High precision, high speed up to 300 packs/ per minute with double blades.

  • Human-machine interface, the parameter setting is easy and convenient, and the color mark can automatically track and correct the cutting length. Digital input of cutting position makes the sealing and cutting more accurate.

  • Self failures diagnosis, clear failure display.

  • Automatic alignment of a single paper, well-known brand servo motor/PLC/touch screen. above these are machine standards.

  • Double film support rollers, automatic film connection, inflatable, alcohol spray, lifting panel, date printer, vertical seal/output brush, fully stainless steel frame. preventing cutting products&empty bags, Above these are machine optional devices.

  • The center distance of the standard horizontal seal knife shaft is 132, which can be changed to 105 or 90 when the product is small and the required packing speed is high (such as 300 packets/min or above).

3. Application of Servo Packaging Machine for Food Products ZP-480S

Applicable for packing various solid regular objects, such as packing pies, cookies, biscuits, chocolates, candies, and so on.


Application of Wrapping Equipment ZP-480S

Application of Wrapping Equipment ZP-480S

Application of Wrapping Equipment ZP-480S

Application of Wrapping Equipment ZP-480S


Technical parameters of Pillow type packaging equipment

Machine Model

Servo Packaging Machine for Food Products ZP-480S

Packing speed

35-300 bags/min

Packing material


Bag style

Pillow type/fat pouch (3-side presealed)

Bag size (L*W*H)

60-Infinite mm, 30-150mm,5-50mm

Film width


Packing Dimension  (L*W*H)


Heat power


Motor power


Total power


Overall weight





Q: If the film used up, do we need to stop the packing machine?

A: If you don’t have the automatic splicing film function, you need to stop the machine and reset the film. If you have, you don’t need to.

Q: What’s the advantage of the automatic splicing film function of the packaging machine?

A: Save time, human operation, and product waste, because you don’t need to slow down or stop the packaging equipment.

Q: Does the packaging machine ZP-480S has a menu storage memory function?

A: Yes, of course, the packaging machine has a menu storage function. It can save at least 100 sets of formulas.

Q: Which parts of the packaging machine ZP-480S are controlled by servo motors?

A:  The ZP-480S Packaging equipment is controlled by 3 servo motors. So the horizontal sealing, horizontal sealing, and the infeed parts are controlled by servo motors.

Q: Can this packaging equipment ZP-480S connect with a fully automatic packaging system?

A: Yes, and the speed of the packing machine ZP-480S can up to 150 bags per minute for small products.

Q: What's the special of the ZP-480S packing machine?

A:  The flow pack machine ZP-480S designed for the big products with 60-80mm height.
