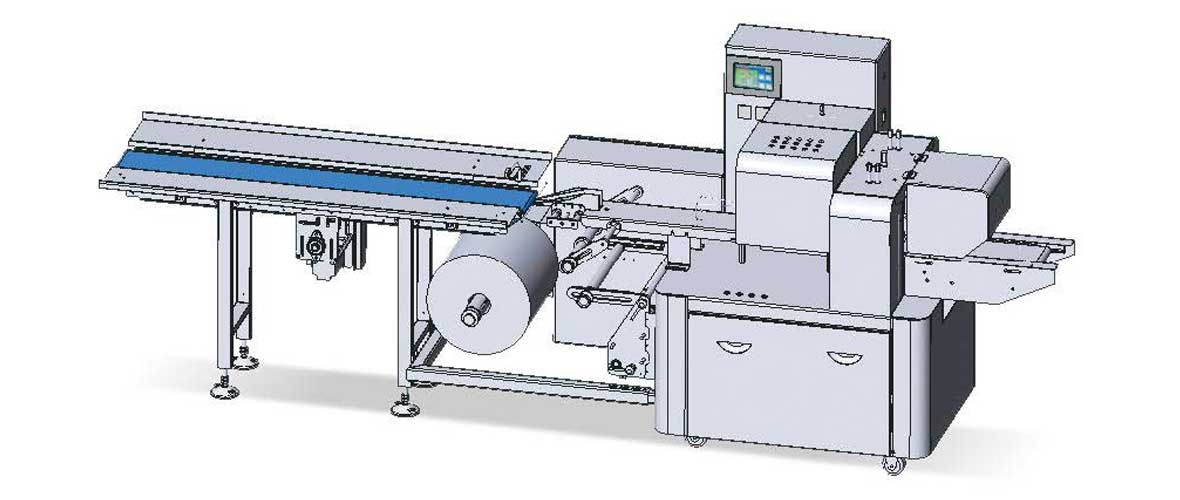

Vegetable Packaging Machine Belt Type Infeed ZP-3000S

Vegetable Packaging Machine Belt Type Infeed ZP-3000S

1. Introduction of Vegetable Packaging Machine

Ruipuhua provides high-efficiency vegetable packaging machines specifically designed for bagging or wrapping fresh produce. We have a solution for all types of fruits and vegetables, offering maximum product protection, extended shelf life, and optimum presentation.

2. Advantages of Vegetable Packaging Machine

  • The plastic film packaging equipment detects and sets bag length automatically.

  • The vegetable packaging machine is easy to maintain or change location, guaranteeing a long life span and hygienic.

  • The digital screen and transducer control the vegetable wrapping machine, to make sure the operation is convenient.

  • Double transducer control with stepless speed shift and wide adjustment, can match well with the former working procedure of the production line.

  • The vegetable wrapping machine automatically and accurately monitors the whole procedure with highly sensitive sensors.

  • With menu storage and memory function, the controller can save multiple sets of parameter configurations, and when the product or packaging film is changed, the formula can be used by calling out the touch screen.

  • Advanced electronic anti-cutting, electronic anti-aircraft bag algorithm. The feed detection electric eye will automatically position the product, and the empty material film will stop, saving packaging materials.

  • Horizontal sealing, vertical sealing, and feeding are all controlled by independent servo motors, with simple mechanical structure, stable operation, and low noise.

  • Man-machine interface, convenient and quick parameter setting, automatic tracking of color code, automatic correction of cutting length. Digitally input the sealing and cutting position to make the sealing and cutting position more accurate.

  • The vegetable wrapping machine automatically diagnoses faults, and the fault display is clear at a glance.

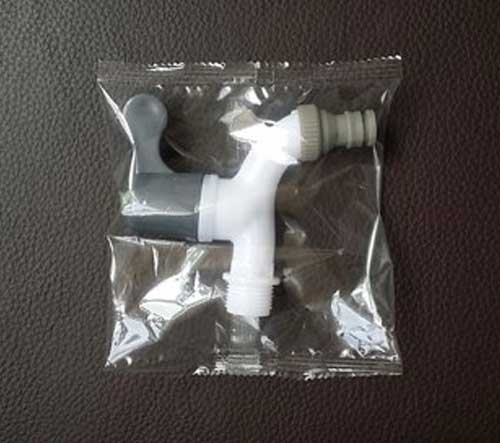

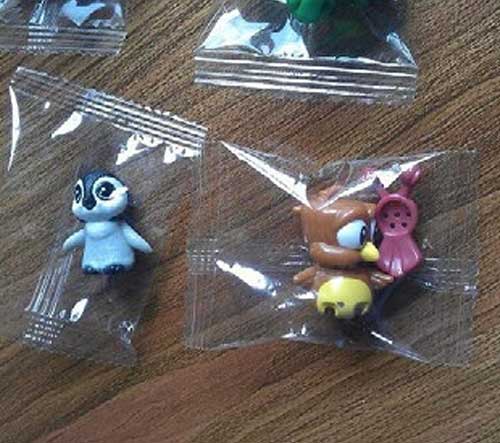

3. Packaging Samples






Technical Parameters of ZP-3000S HFFS Machine

Machine Model

Vegetable Packaging Machine Belt Type Infeed ZP-3000S

Packing speed

35-80 bags/min

Packing material


Bag style

Pillow type/fat pouch (3-side presealed)

Bag size (L*W*H)

90- unlimited,35-140mm,5-50mm

Film width


Packing Dimension  (L*W*H)


Heat power


Motor power


Total power

6.3 kw

Overall weight



Q: What is difference between the upper film and down film packaging machine?

A: The most difference of the packaging machine is the film support location not the same. The application will be different also. The down film packaging machine normally use for the sticky product or secondary package.

Q: What is the main function of the temperature of date printer the wrapping machine?

A: Adjust the date printer temperature if the date is not very clear.

Steps: Please press the “set” button and the “50” signal will show. In that case you can add or reduce temperature by the right buttons.

Q: What’s the difference between the rotary type packaging machine and the box-motion type packaging machine?

A: Difference as below:

① Cutter type: The rotary type packaging machine cutter is rotary one, The box-motion packaging equipment is the box-motion type cutter.

② Machine parts: The cutter jaw unit of the box-motion type packaging equipment is imported from Taiwan.

③ Servo motor: The rotary type packaging machine is a step motor, single servo motor, 2 servo motors, and 3 servo motors are optional. The box-motion type packaging machine is 4 servo motors.
